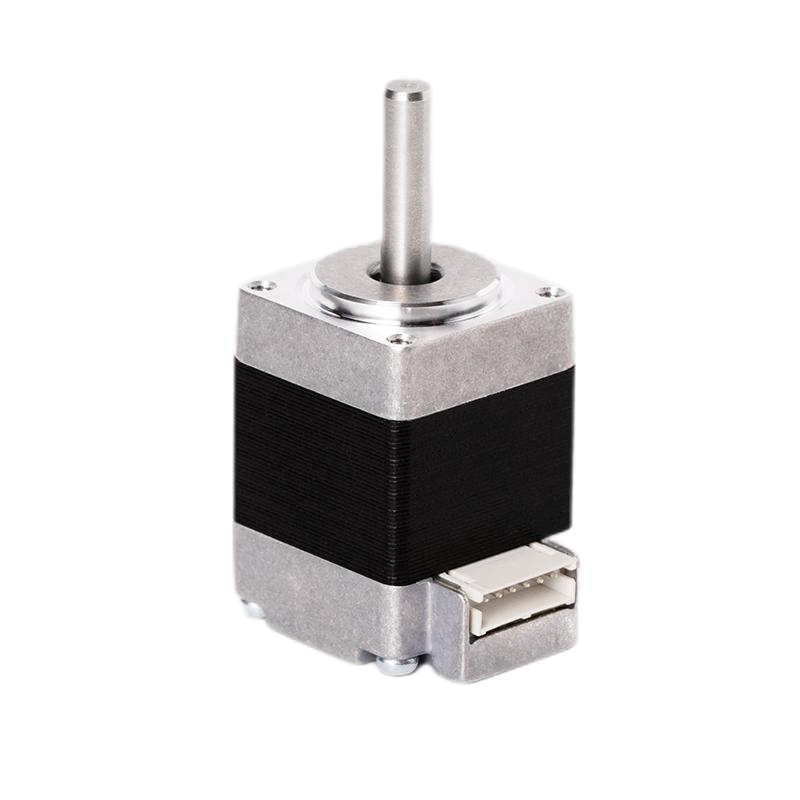

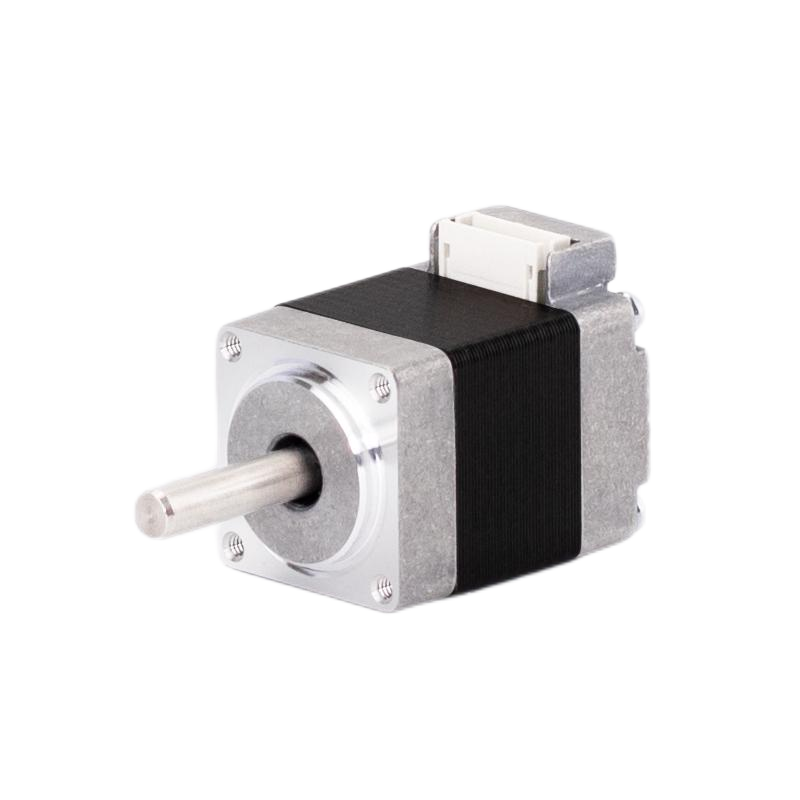

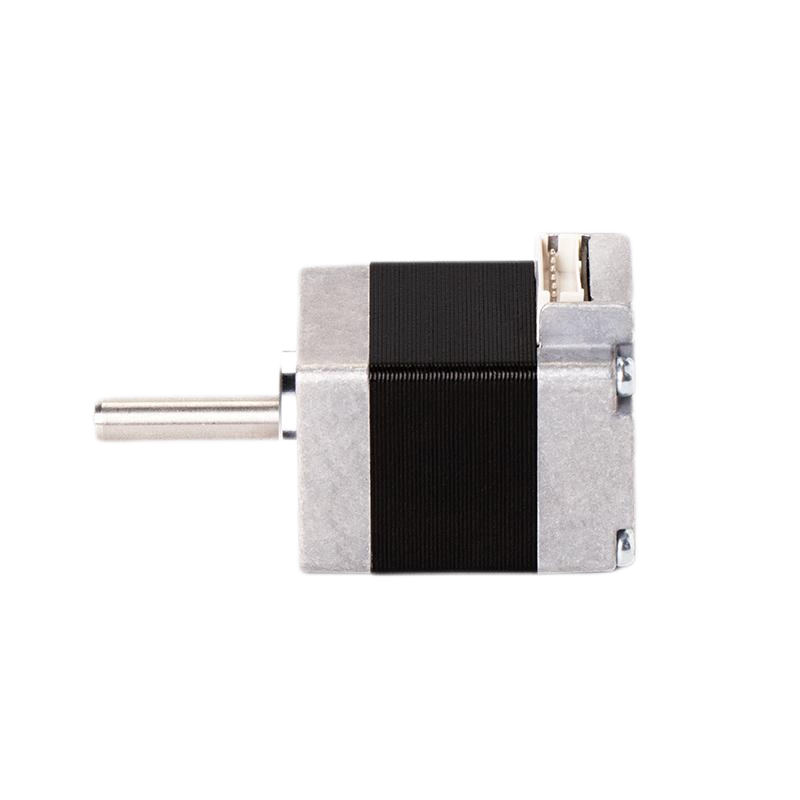

The KST-20D15-0001 is a compact stepper motor designed for applications where space is limited and precise movement is needed. With a step angle of 1.8°, it offers high positioning accuracy for small-scale automation, robotics, and precision machinery.

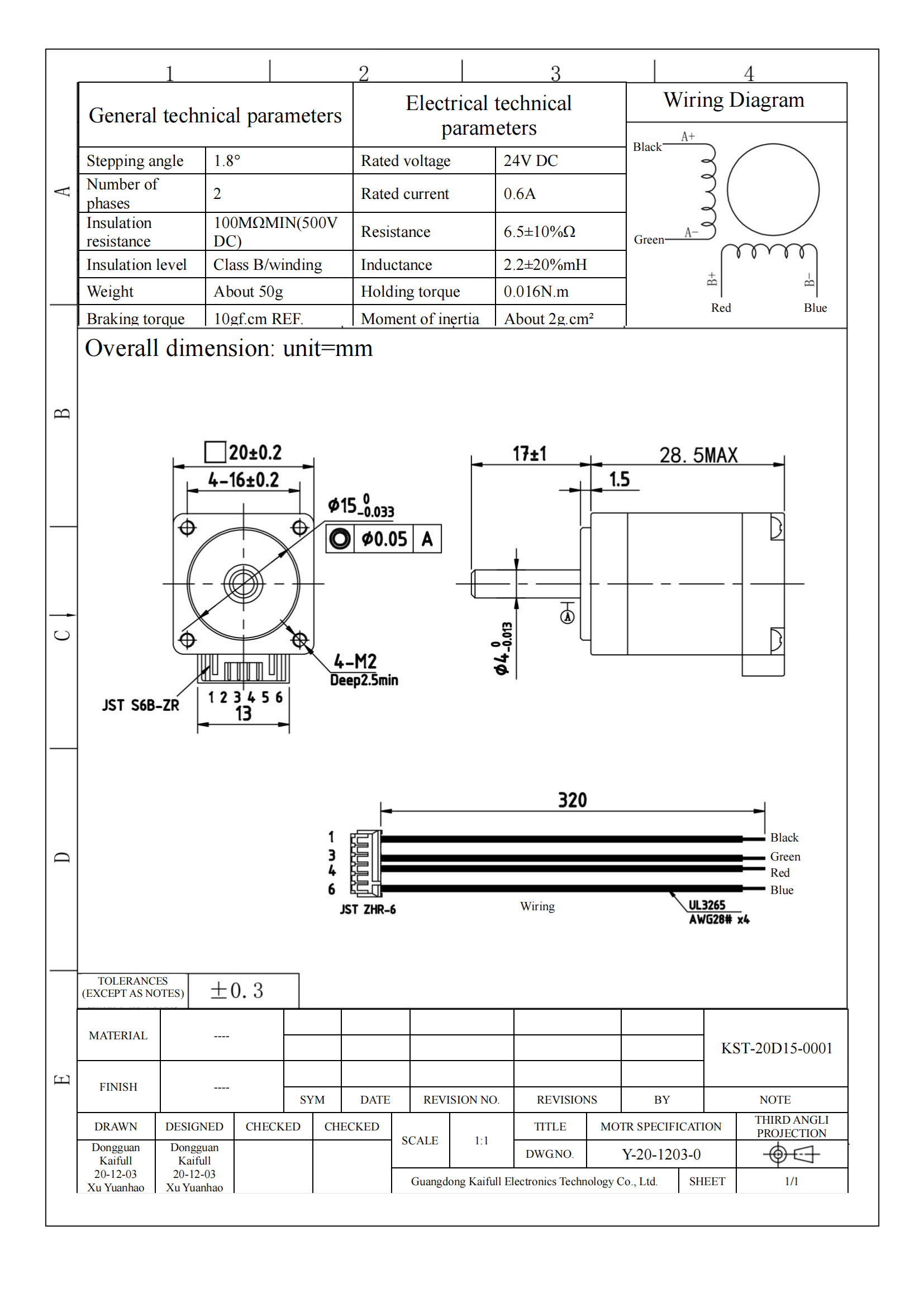

This motor operates on a 24V DC rated voltage and a rated current of 0.6A, providing efficient energy consumption for lightweight applications. The resistance is 6.5Ω, and the inductance is 2.2mH, ensuring smooth operation with low power loss. The insulation resistance of 100MΩ ensures the motor's reliability in various conditions.

Weighing just 50g, the KST-20D15-0001 offers a holding torque of 0.016N·m and a braking torque of 10gf·cm, making it ideal for low-torque applications in space-constrained environments. The moment of inertia is 2g·cm², allowing for rapid response and accurate positioning.

This motor is perfect for applications that demand compact size, light weight, and precision motion control.
