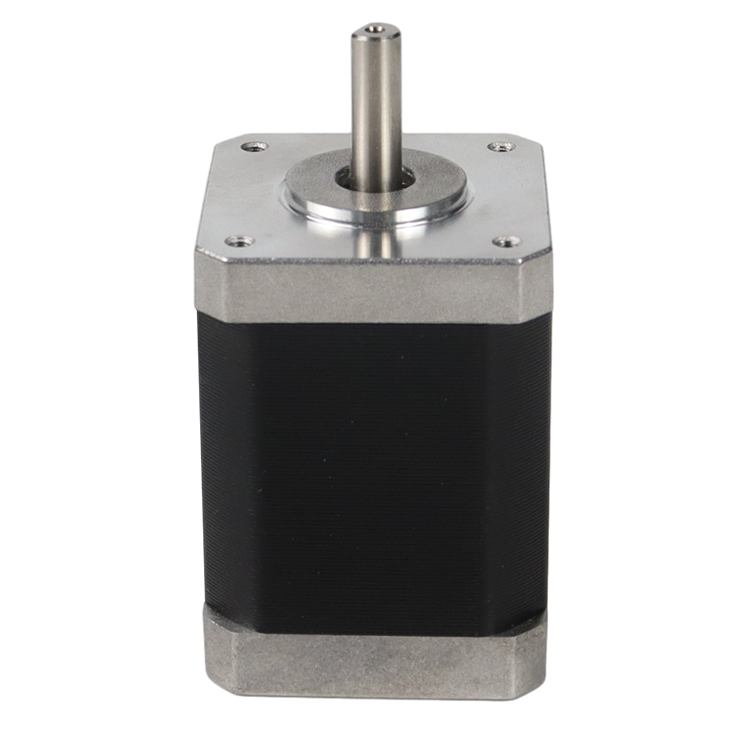

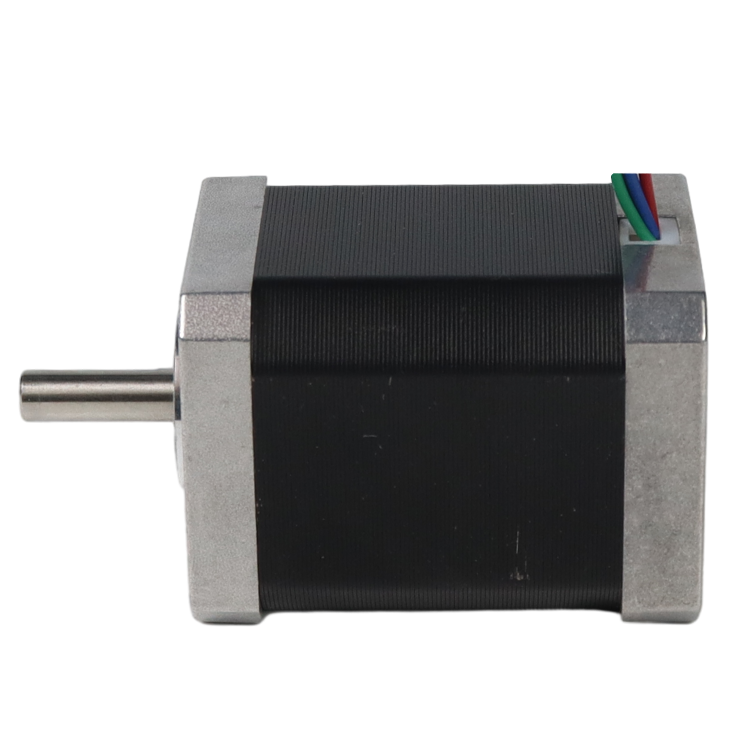

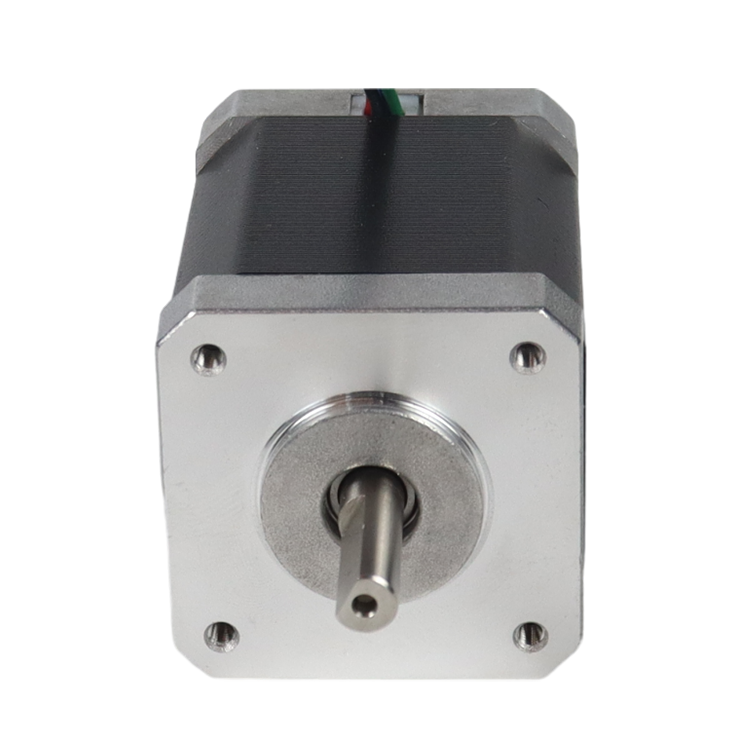

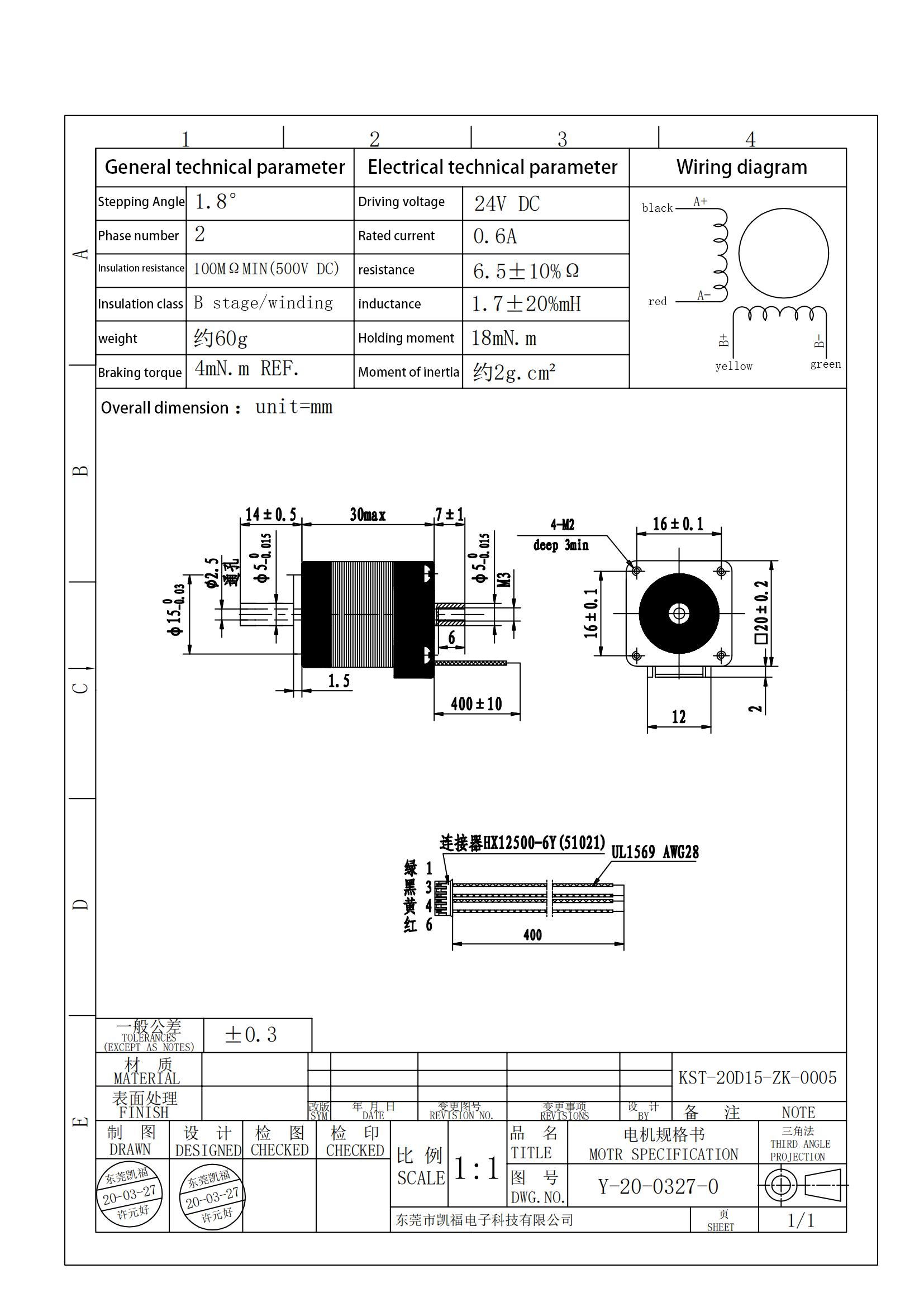

The KST-20D15-ZK-0005 is a high-performance 24V DC stepper motor designed for precision motion control in compact applications. Featuring a 1.8° step angle, this motor provides accurate and repeatable positioning for low-torque applications.

With a rated current of 0.6A, resistance of 6.5Ω, and inductance of 1.7mH, the motor operates efficiently in systems requiring low current draw while still maintaining strong performance. The holding torque and thrust values, along with its lightweight design (weighing only 60g), make it perfect for applications where space and energy efficiency are critical.

The motor’s rotor inertia is 2g·cm², allowing for quick response and minimal vibration in motion. This compact stepper motor is well-suited for use in small-scale automation systems, robotics, motion control systems, and other precision-based devices where low thrust and high accuracy are necessary.

Its shaft diameter is 5mm with a motor length of 30mm, making it suitable for applications with limited space requirements. The KST-20D15-ZK-0005 ensures reliable performance with its high insulation resistance of 100MΩ, making it a safe and durable solution for a variety of demanding environments.
