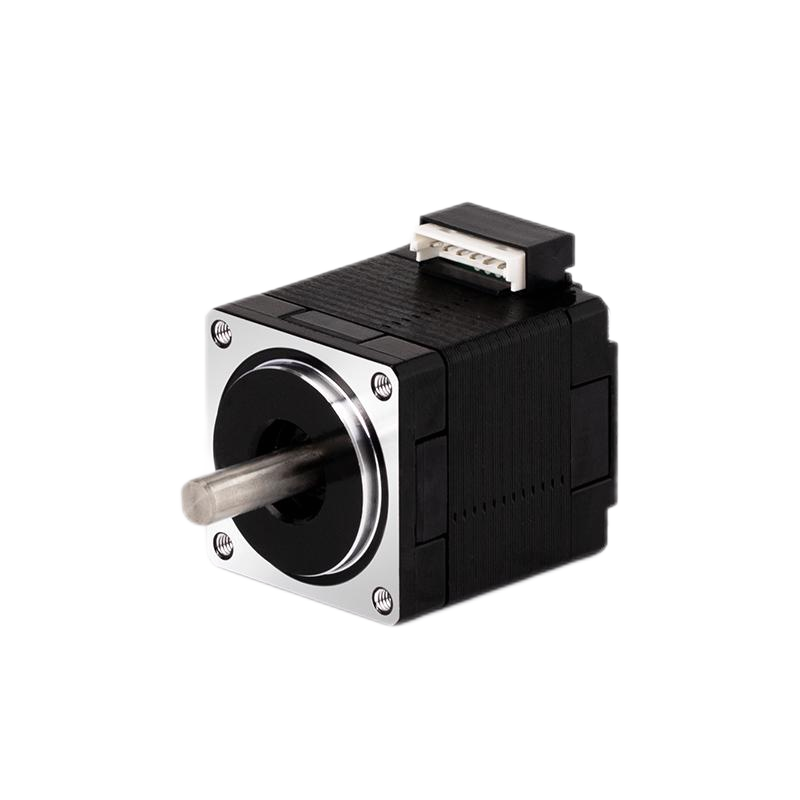

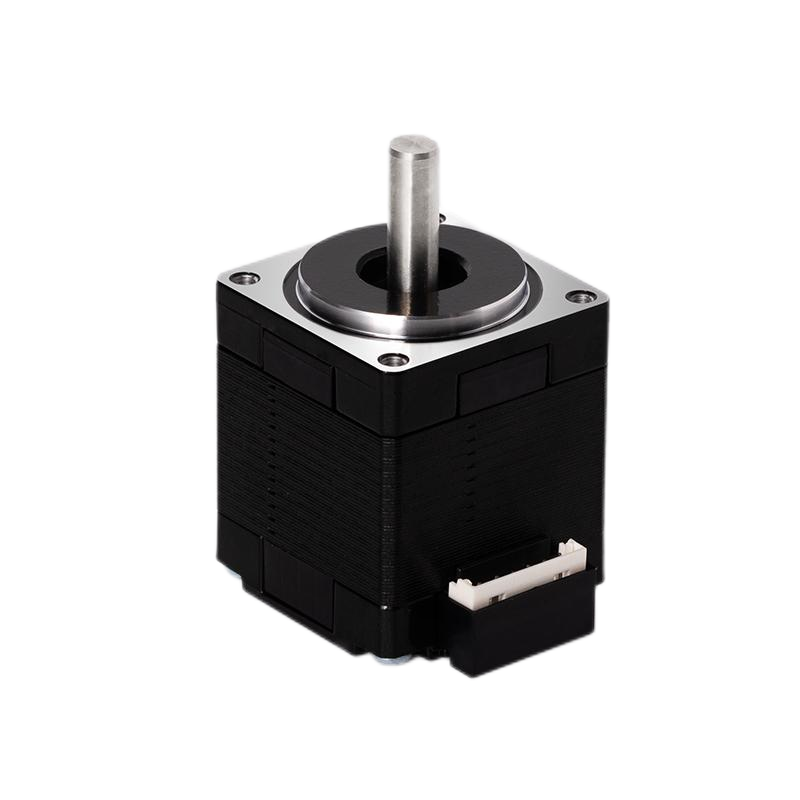

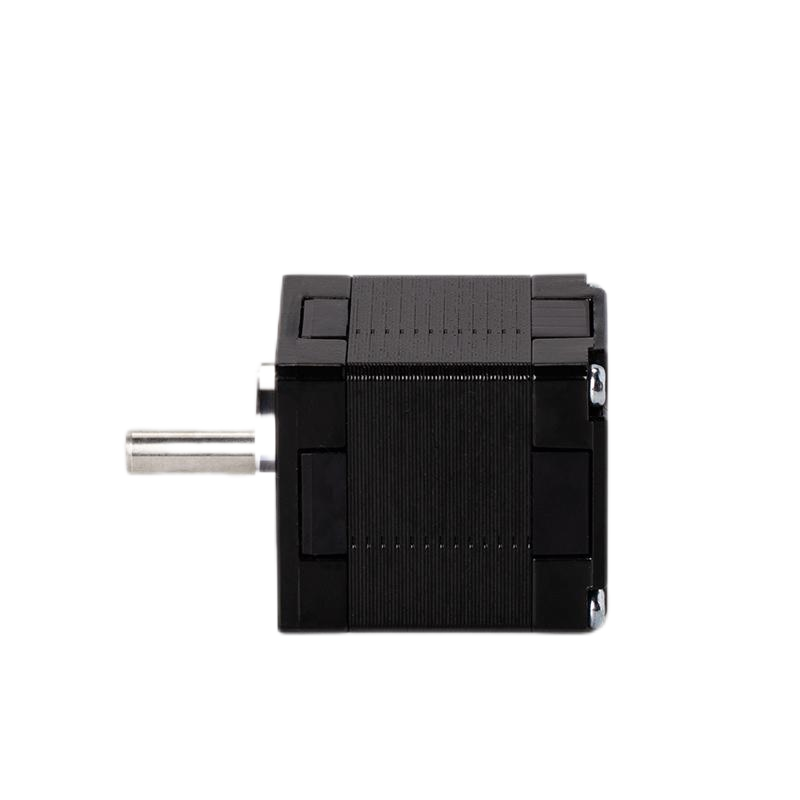

The KST-28D18-0001 is a highly efficient 1.8° two-phase stepper motor that provides precise and reliable motion control for small applications. With a rated current of 0.7A and a holding torque of 60mN·m, this motor is well-suited for compact devices and systems requiring low power consumption and space-saving design.

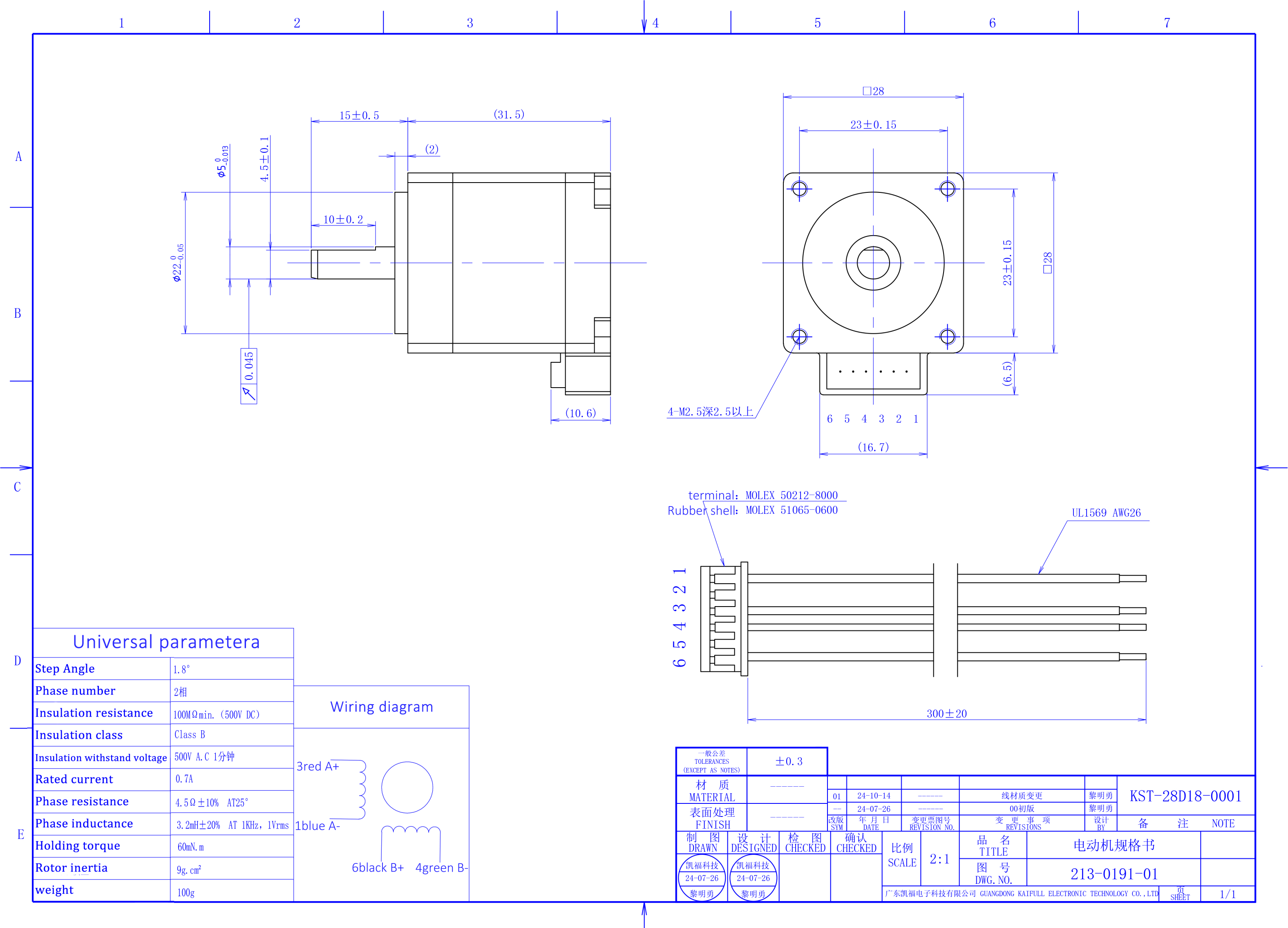

Key specifications for the KST-28D18-0001 stepper motor include:

• Phase resistance of 4.5Ω ± 10% at 25°C, offering stable operation for various control systems.
• Phase inductance of 3.2mH ± 20% at 1KHz and 1Vrms, ensuring a balanced response across different operating frequencies.
• Insulation resistance of 100MΩ min. at 500V DC, offering enhanced safety and reliability for industrial applications.
• Class B insulation and 500V AC withstand voltage, making it suitable for high-voltage environments.
• Rotor inertia of 9g·cm² and a weight of 100g, ideal for applications where minimal inertia and low weight are critical.

This motor is ideal for use in compact robotics, automation, 3D printers, medical devices, and other applications where low power, precise movement, and a compact size are required.
