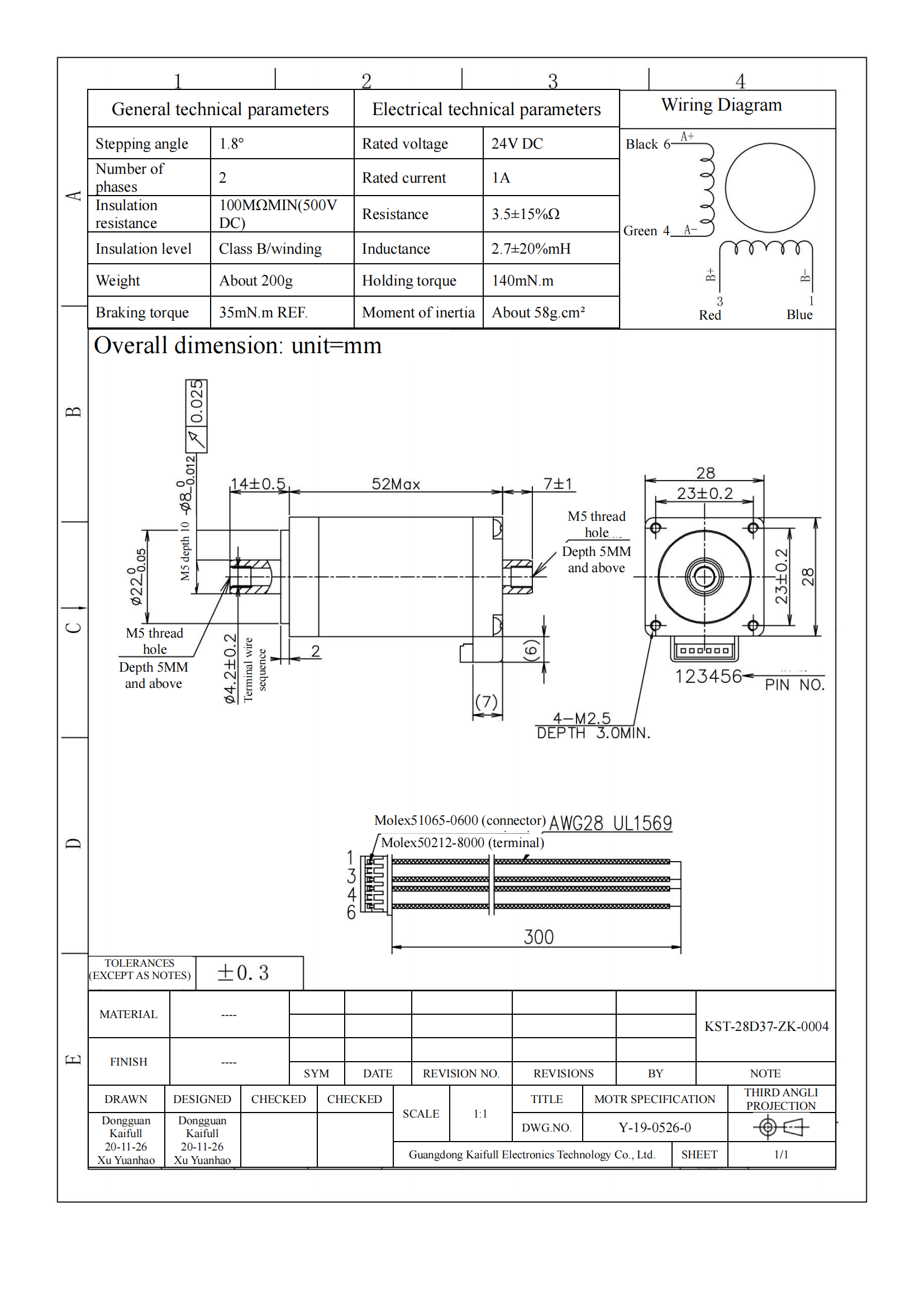

General technical parameters | Electrical technical parameters | ||
Stepping angle | 1.8° | Rated voltage | 24V DC |
Number of phases | 2 | Rated current | 1A |
Insulation resistance | 100MΩMIN(500V DC) | Resistance | 3.5±15%Ω |
Insulation level | Class B/winding | Inductance | 2.7±20%mH |
Weight | About 200g | Holding torque | 140mN.m |
Braking torque | 35mN.m REF. | Moment of inertia | About 58g.cm² |
The KST-28D37-ZK-0004 is a high-performance stepper motor designed for precise motion control applications. With a step angle of 1.8°, this motor offers fine resolution for a variety of tasks requiring accurate positioning.
Operating with a rated voltage of 24V DC and a rated current of 1A, the motor offers efficient performance. The resistance is 3.5Ω ± 15%, and the inductance is 2.7mH ± 20%, ensuring smooth and reliable motion control. The insulation resistance is 100MΩ (500V DC), and it is rated with Class B insulation for enhanced durability in various environments.
With a holding torque of 140mN·m, this motor provides sufficient torque for small to medium load applications. The braking torque is 35mN·m, and the moment of inertia is 58g·cm², making it suitable for precise movements in lightweight systems.
Weighing only 200g, the KST-28D37-ZK-0004 is lightweight and ideal for use in compact systems such as robotics, automation, and 3D printers, where size and weight are critical factors.
