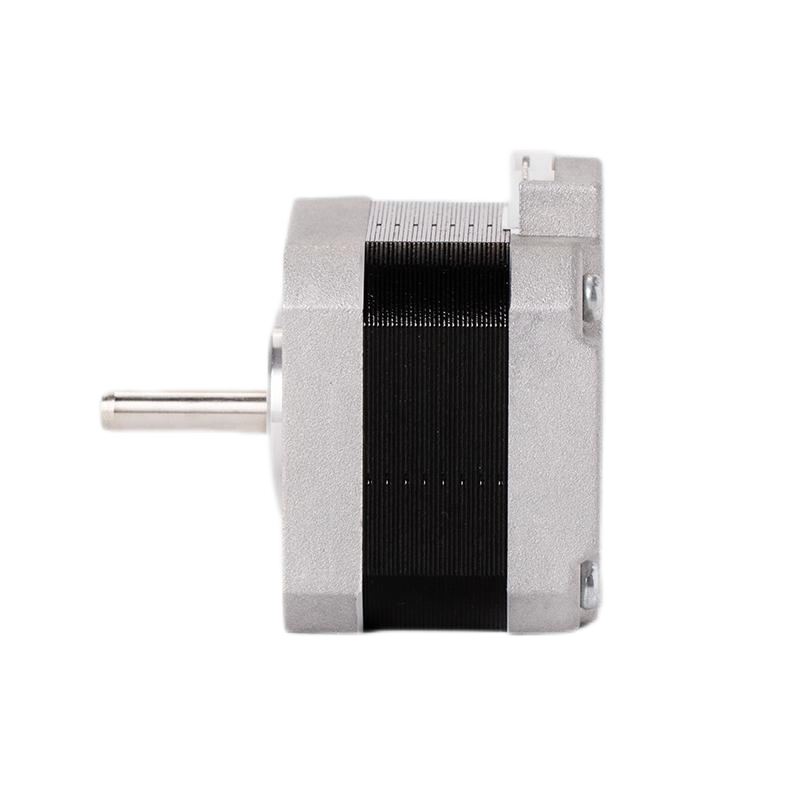

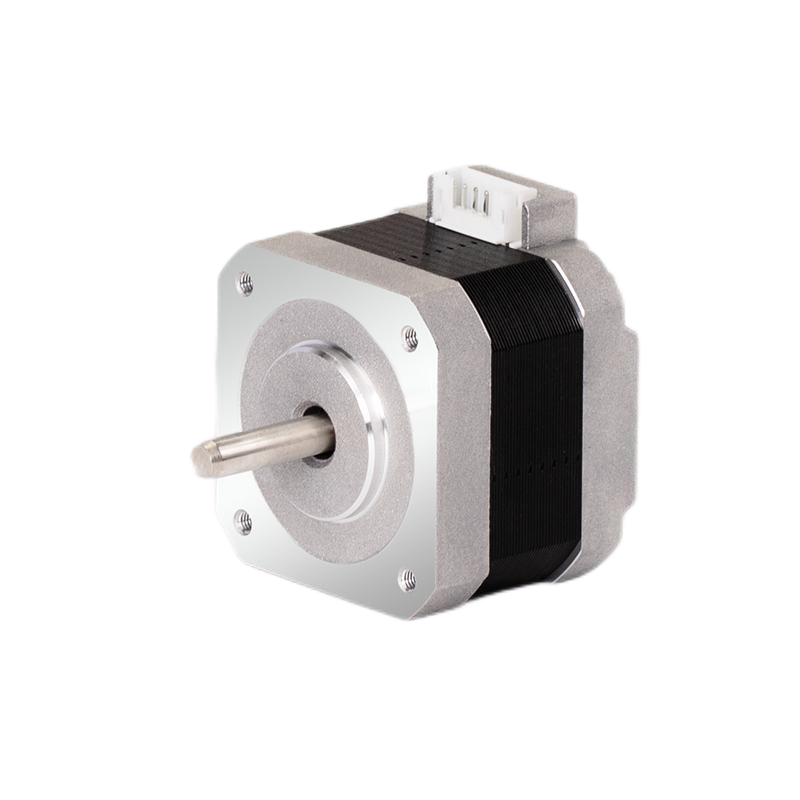

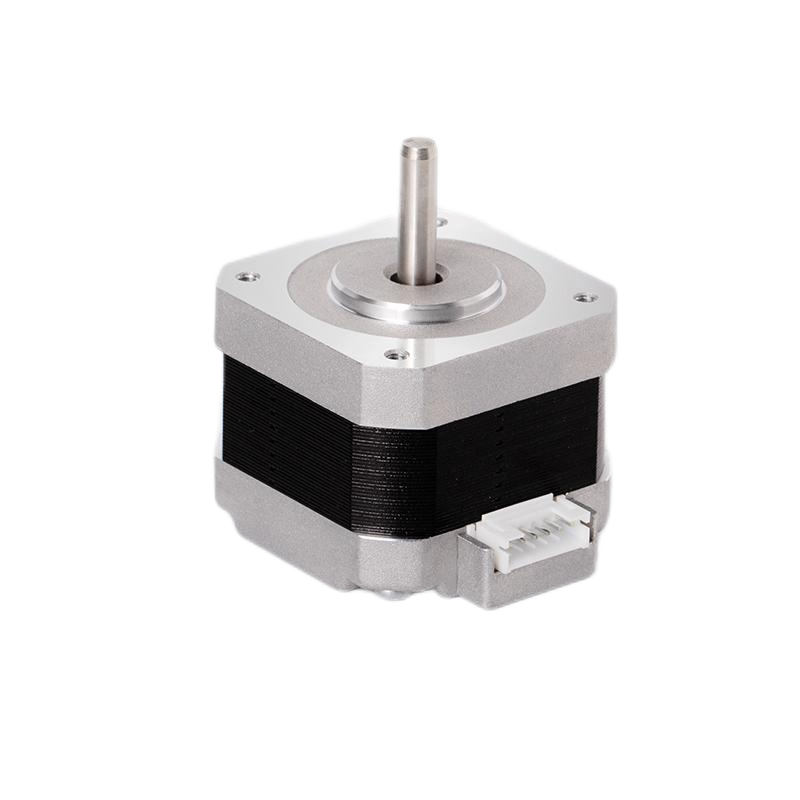

The KST-42D16-0001 is a compact 1.8° two-phase stepper motor ideal for low current applications in precise motion control systems. With a rated current of 0.85A and a holding torque of 0.24N·m, this motor offers efficient and reliable performance for smaller devices and automation solutions.

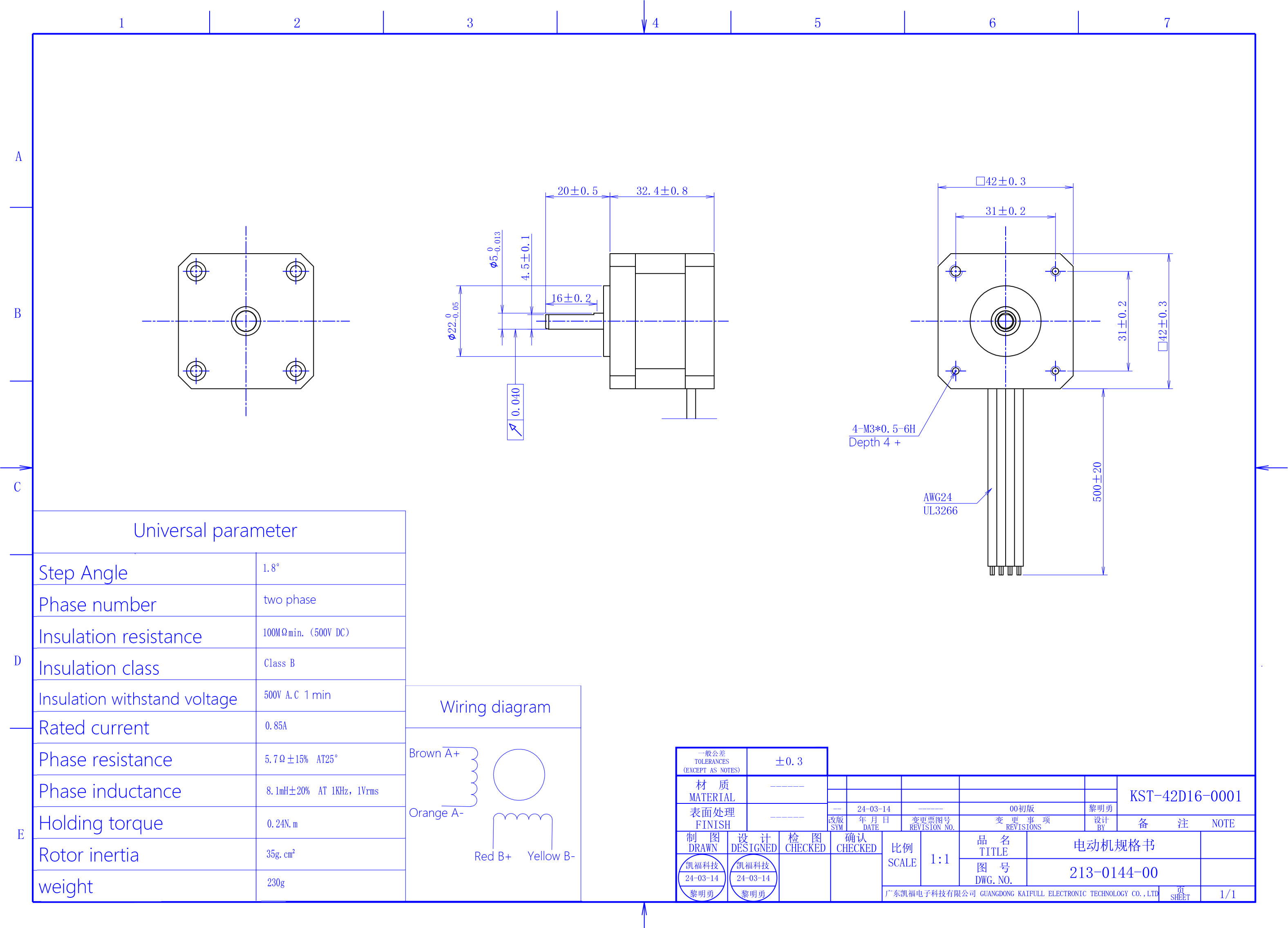

Key specifications for the KST-42D16-0001 stepper motor include:

• Phase resistance of 5.7Ω ± 15% and phase inductance of 8.1mH ± 20% at 1KHz, ensuring stable operation for light-duty applications.
• Insulation resistance of 100MΩ min. at 500V DC, providing excellent electrical insulation for extended safety.
• Class B insulation with a 500V AC withstand voltage, offering industrial-grade reliability.
• Rotor inertia of 35g·cm² and a weight of 230g, ideal for applications requiring low inertia and space efficiency.

This motor is suitable for use in small-scale CNC machines, robotic systems, automated devices, and low-power motion control applications that require compact size, reliability, and precision.
