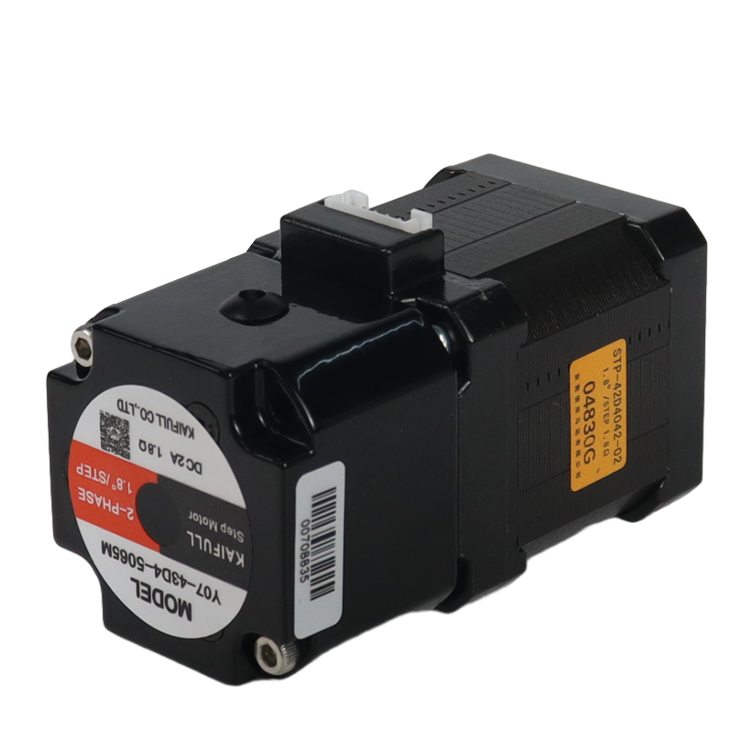

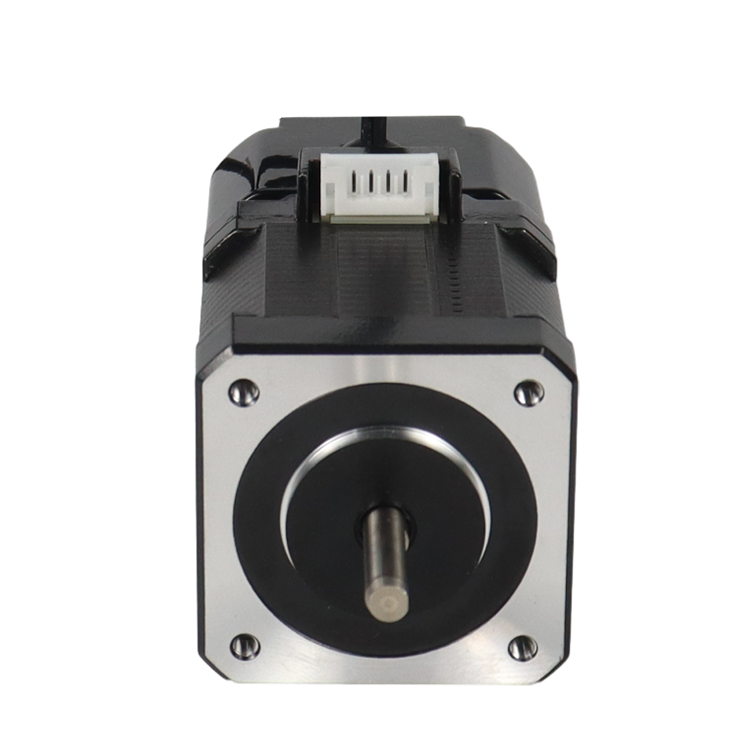

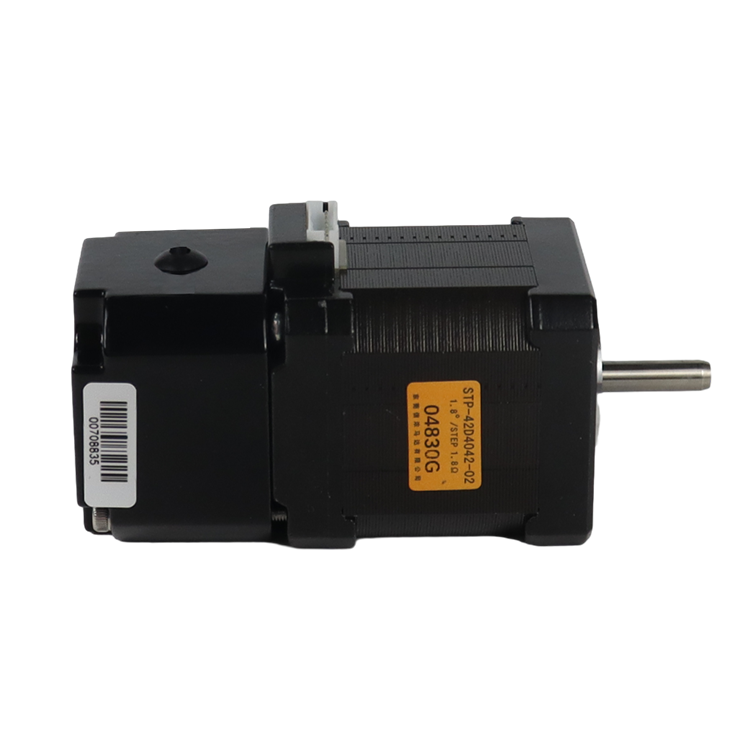

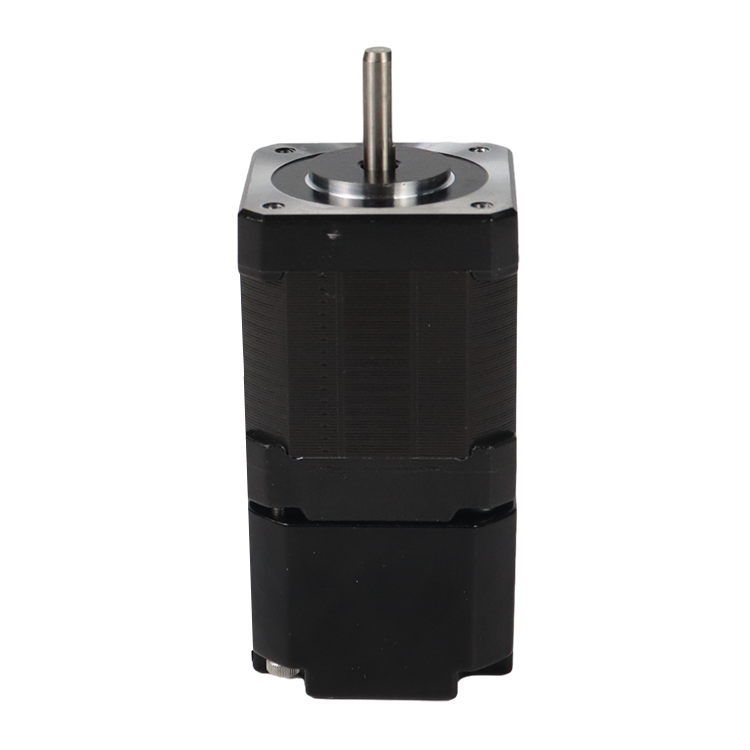

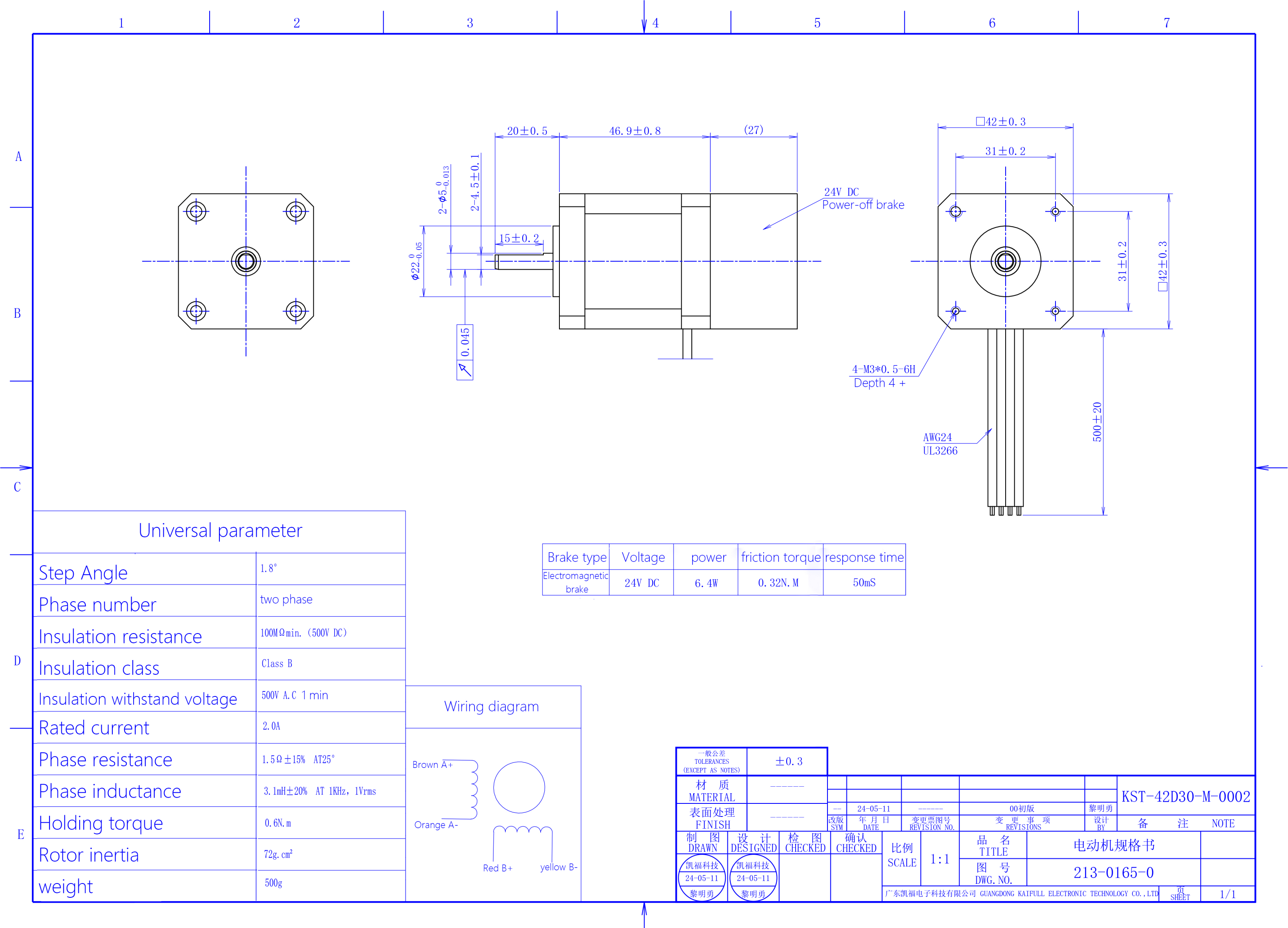

The KST-42D30-M-0002 is a 1.8° two-phase stepper motor designed for applications where precise motion control and compact power are required. With a rated current of 2.0A and 0.6N·m holding torque, this motor is ideal for robotics, automation, and CNC systems. Its 42mm frame size offers a compact footprint while maintaining excellent performance for a wide range of applications.

Key features of the KST-42D30-M-0002 include:

• Phase resistance of 1.5Ω ± 15% and phase inductance of 3.1mH ± 20% at 1KHz, offering stable power delivery and efficient operation in demanding applications.
• Insulation resistance of 100MΩ min. at 500V DC, ensuring reliable performance and long lifespan in a variety of operating conditions.
• Class B insulation with a 500V AC withstand voltage, designed for durability in industrial environments.
• A rotor inertia of 72g·cm² and a weight of 500g, offering fast response times and precision for tasks that require high acceleration and deceleration.

This motor is perfect for a range of motion control tasks in automated systems, printing machinery, robotics, and more, providing high efficiency and reliable torque output in a compact form factor.
