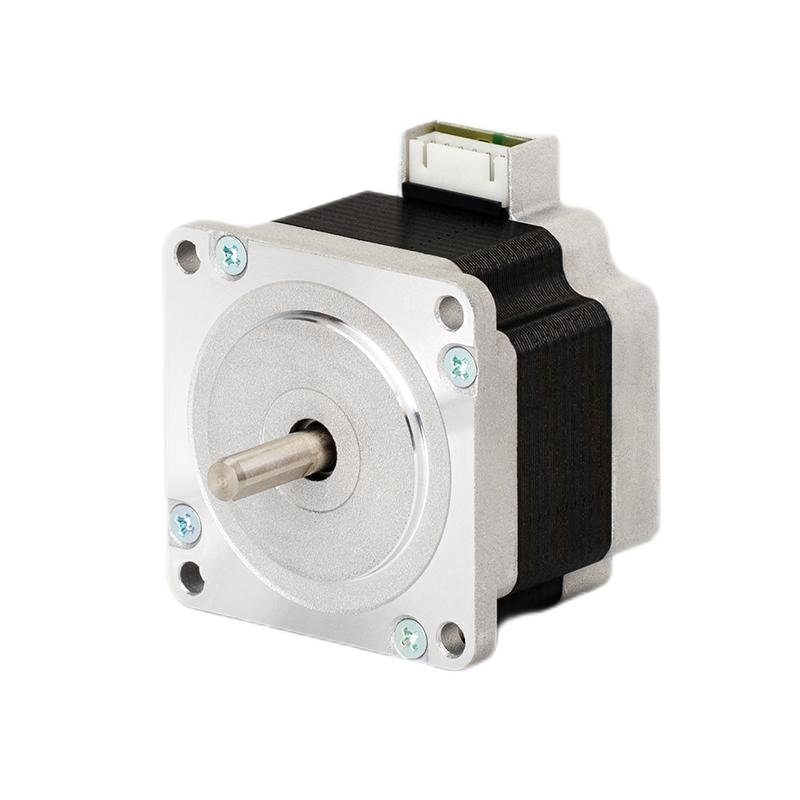

The KST-57D23-0002 is a high-quality 1.8° two-phase stepper motor designed for precise motion control in various applications such as robotics, automation, and CNC machinery. Featuring a rated current of 3.0A and a holding torque of 0.57N·m, this stepper motor delivers reliable and consistent performance for demanding tasks.

Key features of the KST-57D23-0002 include:

• Phase resistance of 0.75Ω ± 15% and phase inductance of 1.25mH ± 20% at 1KHz, ensuring efficient power consumption and smooth operation.
• Insulation resistance of 100MΩ min. at 500V DC, providing superior protection and durability under harsh conditions.
• Class B insulation and 500V AC withstand voltage, ensuring long-lasting performance and safety.
• A rotor inertia of 150g·cm² and a weight of 420g, making it an ideal choice for applications requiring moderate torque and fast response.

This stepper motor is perfect for applications that demand high accuracy and reliability while balancing efficiency and torque. It is well-suited for motion control systems, actuators, and precision machinery.
