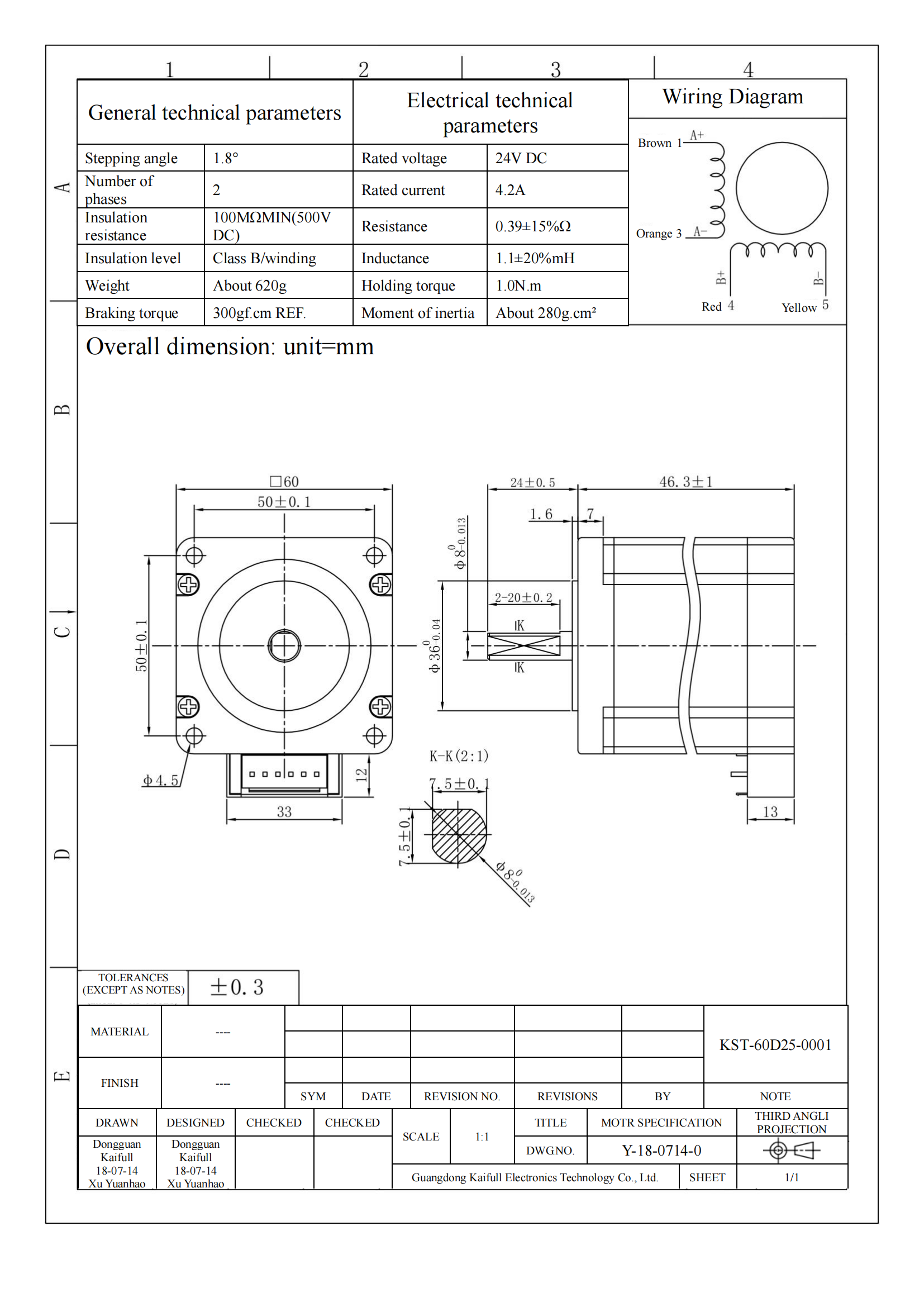

General technical parameters | Electrical technical parameters | ||
Stepping angle | 1.8° | Rated voltage | 24V DC |
Number of phases | 2 | Rated current | 4.2A |
Insulation resistance | 100MΩMIN(500V DC) | Resistance | 0.39±15%Ω |
Insulation level | Class B/winding | Inductance | 1.1±20%mH |
Weight | About 620g | Holding torque | 1.0N.m |
Braking torque | 300gf.cm REF. | Moment of inertia | About 280g.cm² |

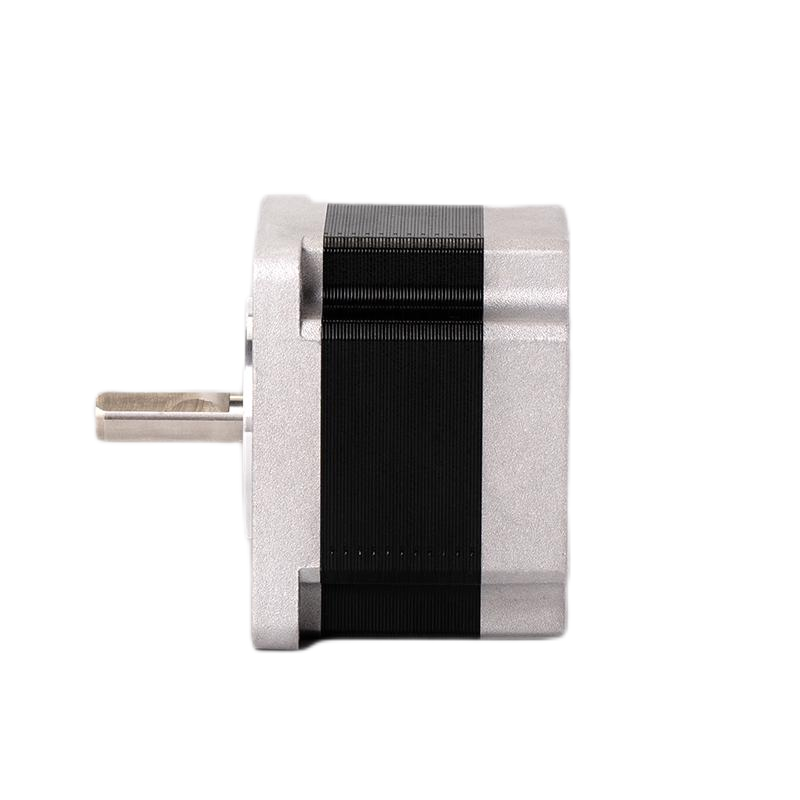

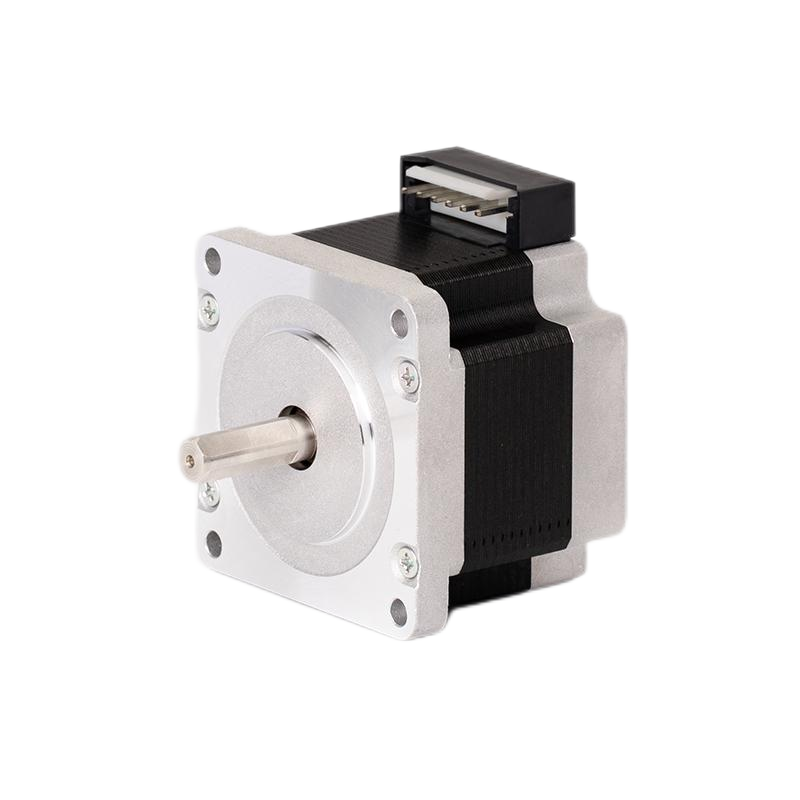

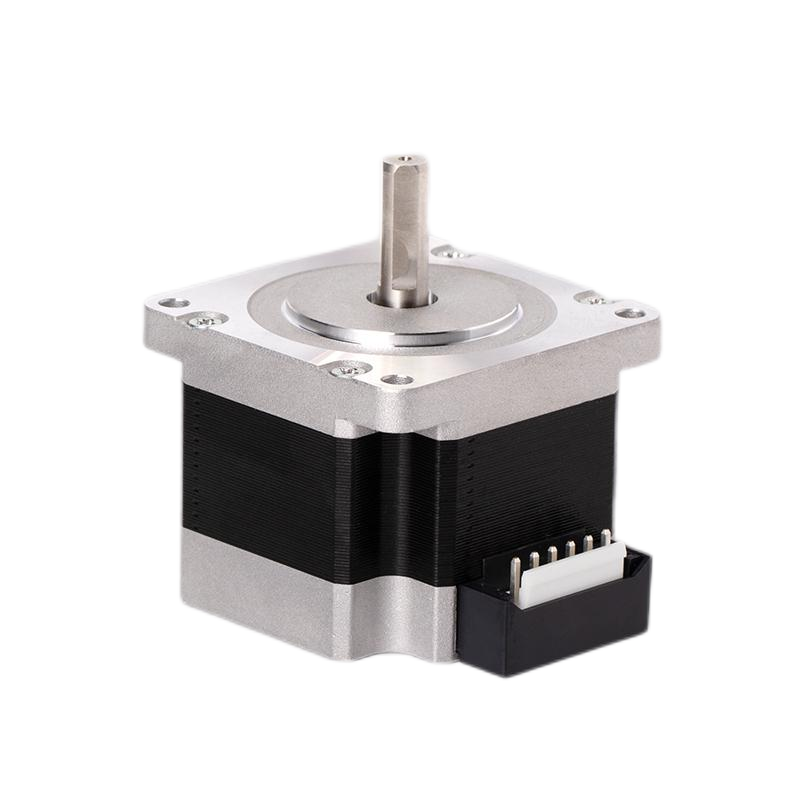

The KST-60D25-0001 is a two-phase stepper motor designed for precise control in various industrial and automation applications. With a step angle of 1.8° and a holding torque of 1.0N·m, this motor provides reliable performance for CNC machines, robotics, and other precision machinery.
Powered by 24V DC and operating at a rated current of 4.2A, the motor offers smooth and efficient operation. It has a phase resistance of 0.39Ω±15% and an inductance of 1.1mH±20%, ensuring stable and energy-efficient performance.
The KST-60D25-0001 features Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, ensuring durability and long-lasting performance in demanding environments. The braking torque is 300gf·cm, and the moment of inertia is approximately 280g·cm², providing quick, precise stops.
Weighing just about 620g, this motor is a lightweight and high-performance solution for applications requiring moderate torque and high precision in compact spaces.
