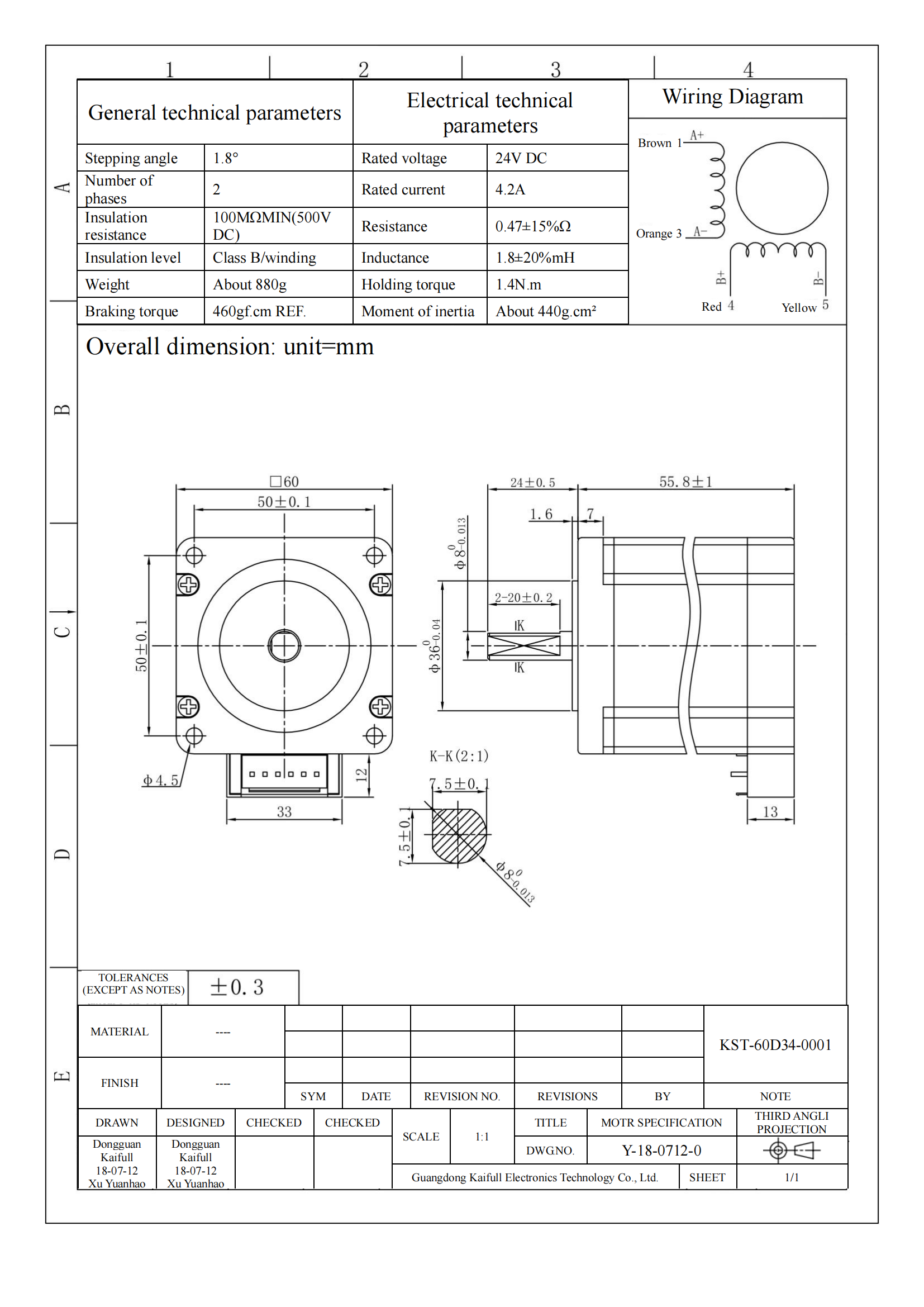

General technical parameters | Electrical technical parameters | ||
Stepping angle | 1.8° | Rated voltage | 24V DC |
Number of phases | 2 | Rated current | 4.2A |
Insulation resistance | 100MΩMIN(500V DC) | Resistance | 0.47±15%Ω |
Insulation level | Class B/winding | Inductance | 1.8±20%mH |
Weight | About 880g | Holding torque | 1.4N.m |
Braking torque | 460gf.cm REF. | Moment of inertia | About 440g.cm² |

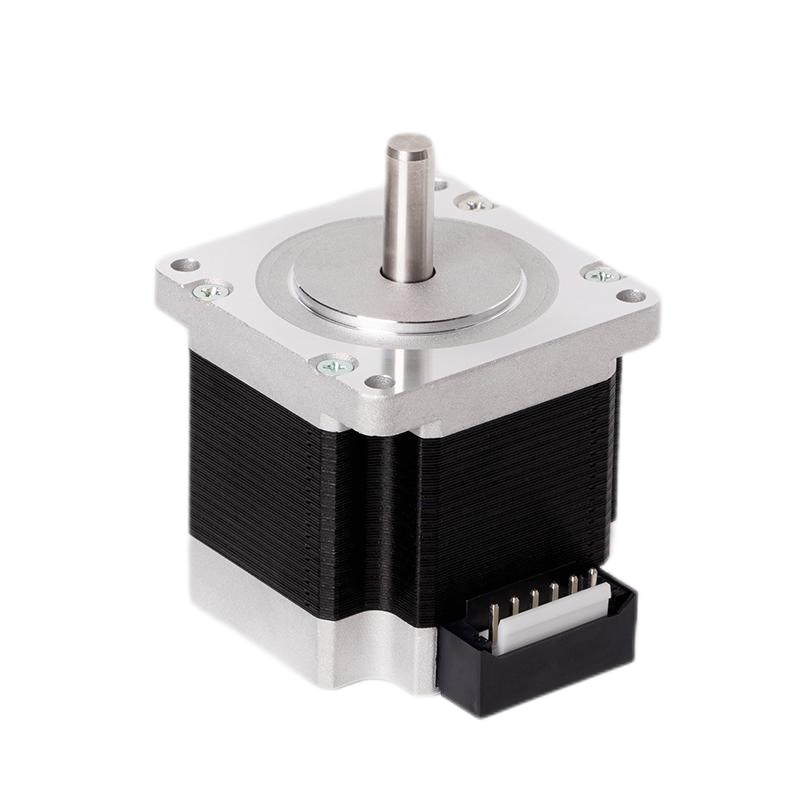

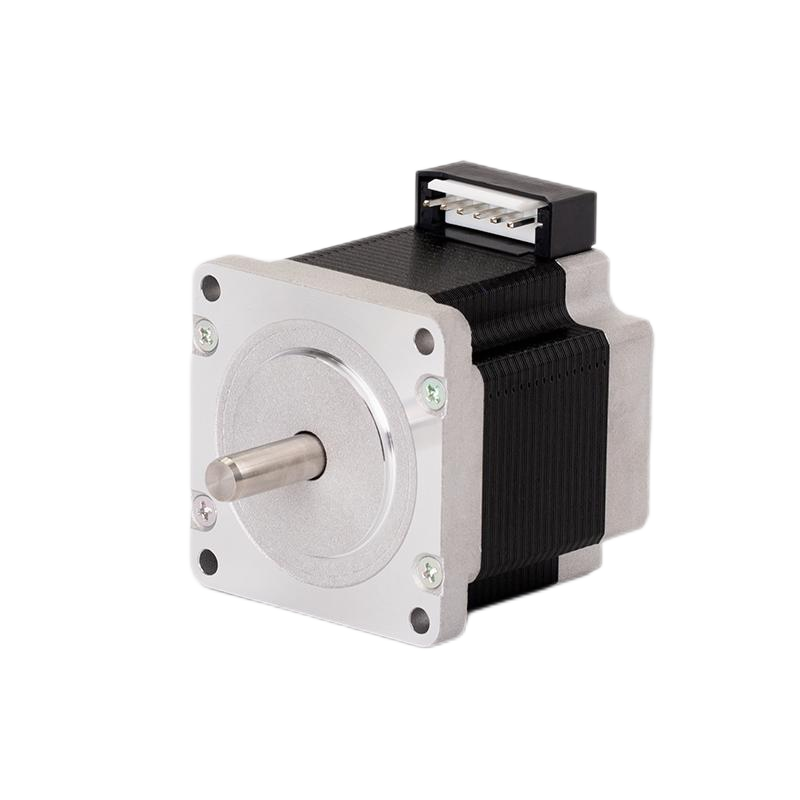

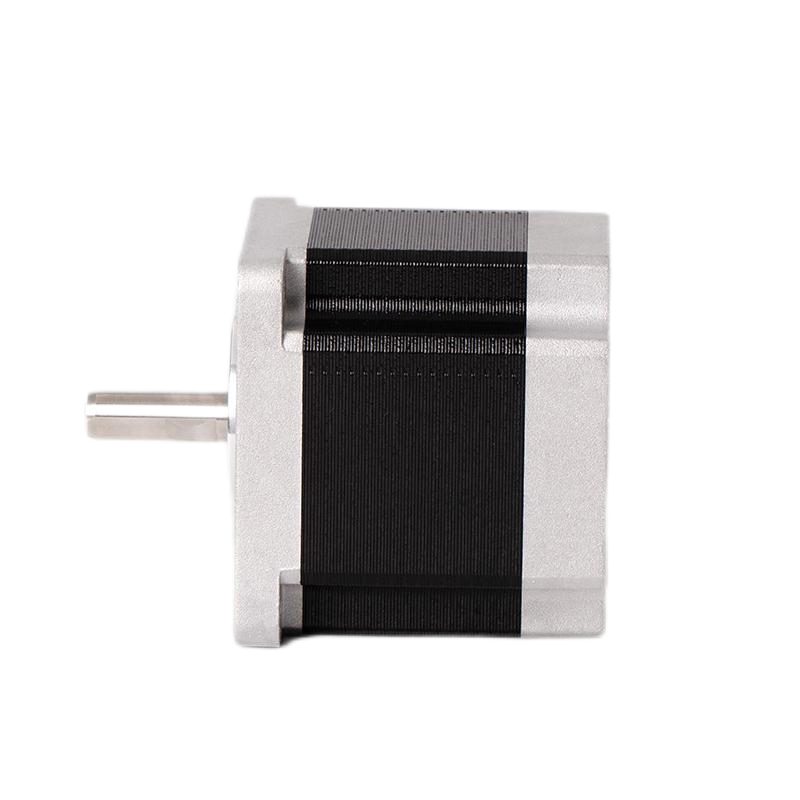

The KST-60D34-0001 is a two-phase stepper motor designed for applications that require moderate torque and precise motion control. With a step angle of 1.8° and a holding torque of 1.4N·m, this motor delivers reliable performance for systems such as CNC machines, robotics, and industrial automation.
Operating at a rated current of 4.2A and powered by a 24V DC drive voltage, the motor provides smooth, efficient performance with low energy consumption. It has a phase resistance of 0.47Ω±15% and an inductance of 1.8mH±20%, ensuring stable and accurate operation.
Built with Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, the KST-60D34-0001 is designed for long-term reliability. The braking torque is 460gf·cm, and the moment of inertia is approximately 440g·cm², offering fast response times for precise movement control.
Weighing about 880g, the KST-60D34-0001 is a compact and efficient motor solution ideal for use in applications where moderate torque and high precision are essential.
