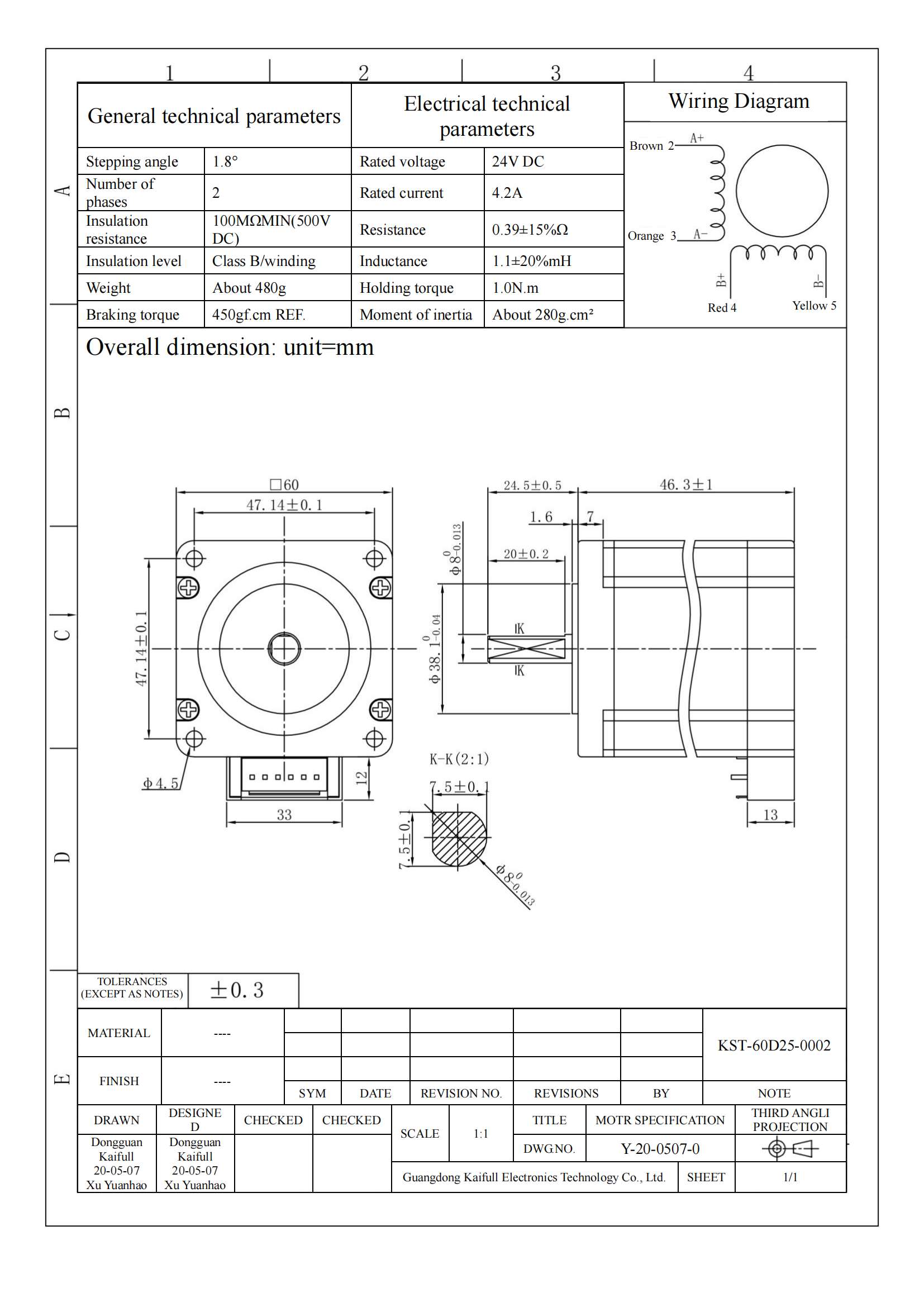

General technical parameters | Electrical technical parameters | ||
Stepping angle | 1.8° | Rated voltage | 24V DC |
Number of phases | 2 | Rated current | 4.2A |
Insulation resistance | 100MΩMIN(500V DC) | Resistance | 0.39±15%Ω |
Insulation level | Class B/winding | Inductance | 1.1±20%mH |
Weight | About 480g | Holding torque | 1.0N.m |
Braking torque | 450gf.cm REF. | Moment of inertia | About 280g.cm² |

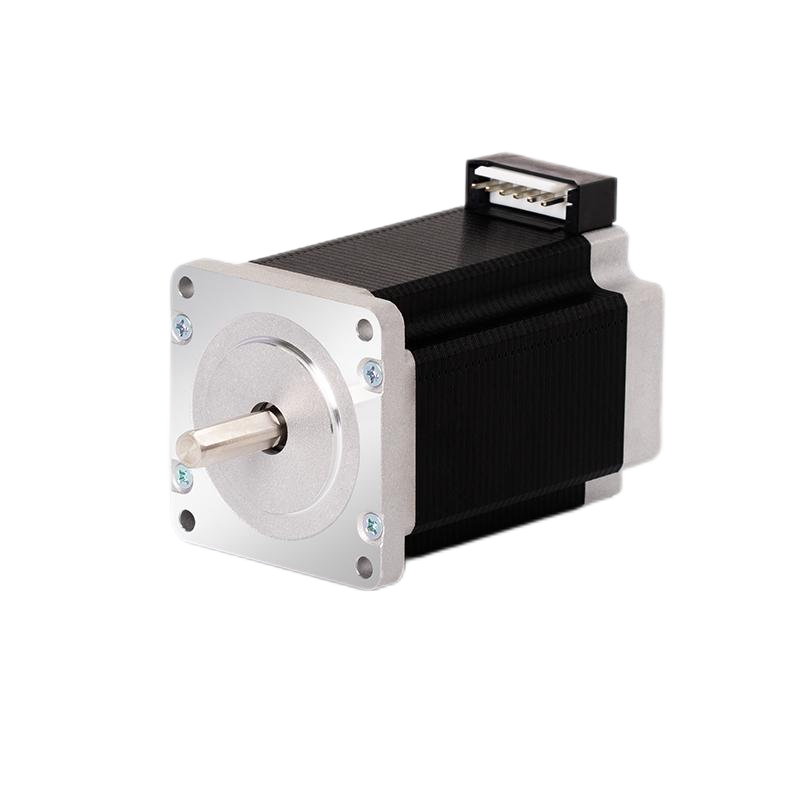

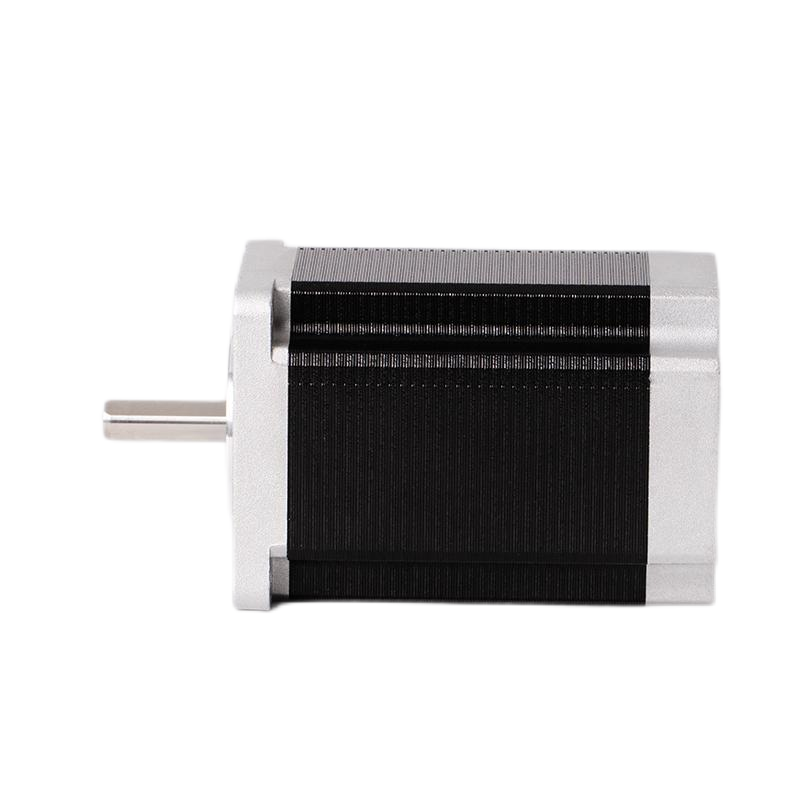

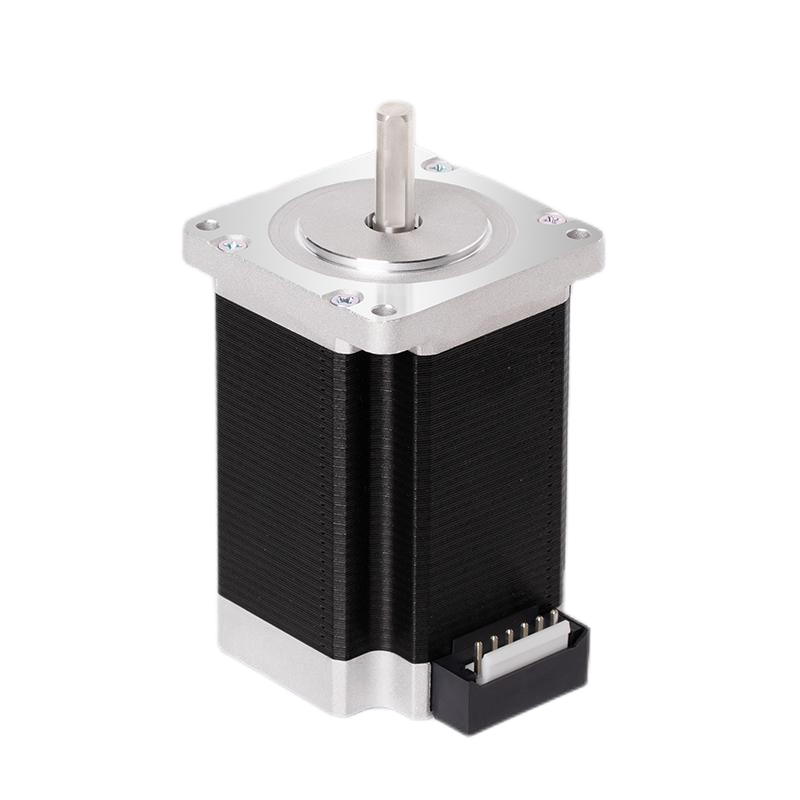

The KST-60D25-0002 is a compact and efficient two-phase stepper motor, designed for applications where moderate torque and precise positioning are required. With a step angle of 1.8° and a holding torque of 1.0N·m, this motor offers reliable performance for industrial automation, robotics, and CNC machinery.
Operating at a rated current of 4.2A and powered by a 24V DC drive voltage, the motor delivers smooth, efficient operation and minimizes energy consumption. It features a phase resistance of 0.39Ω±15% and an inductance of 1.1mH±20%, ensuring stable performance under various operational conditions.
Built with Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, the KST-60D25-0002 is designed to operate in demanding environments with excellent durability. The braking torque is 450gf·cm, and the moment of inertia is approximately 280g·cm², ensuring quick response and precise movement control.
Weighing only about 480g, the KST-60D25-0002 is an ideal solution for applications where space is limited but high precision and moderate torque are still essential.
