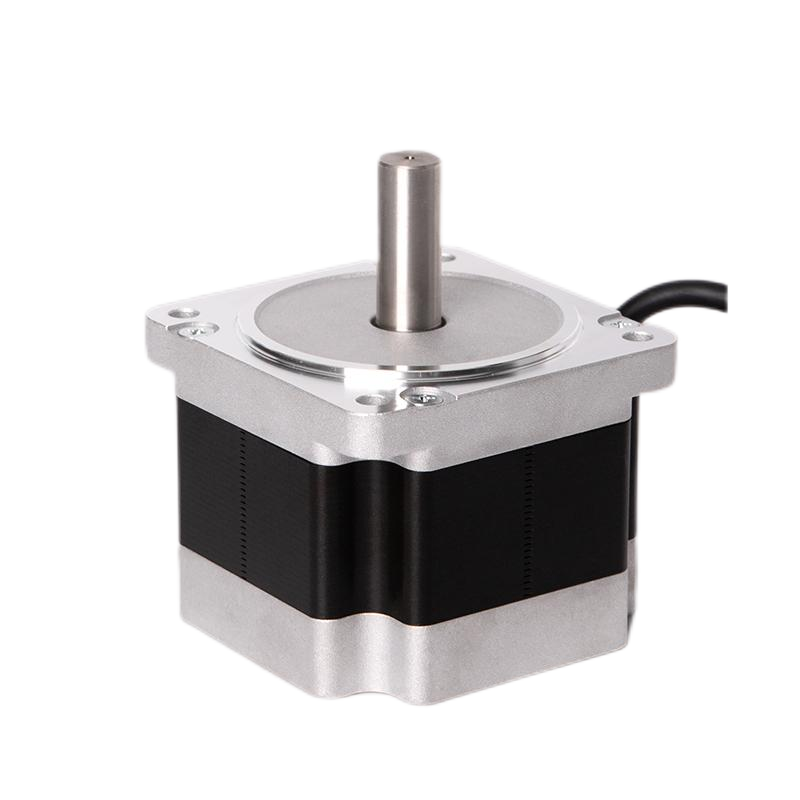

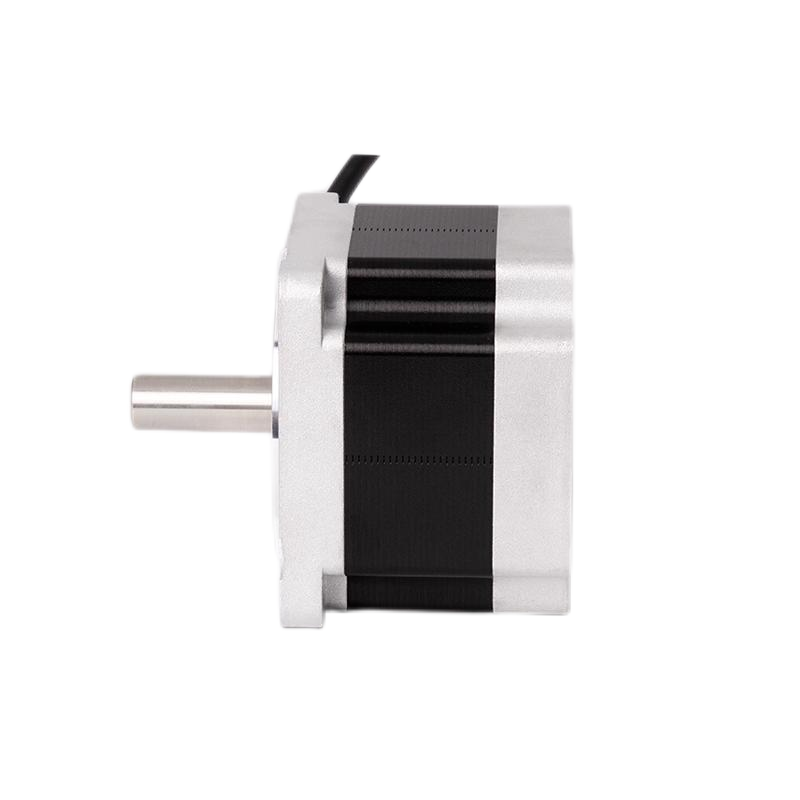

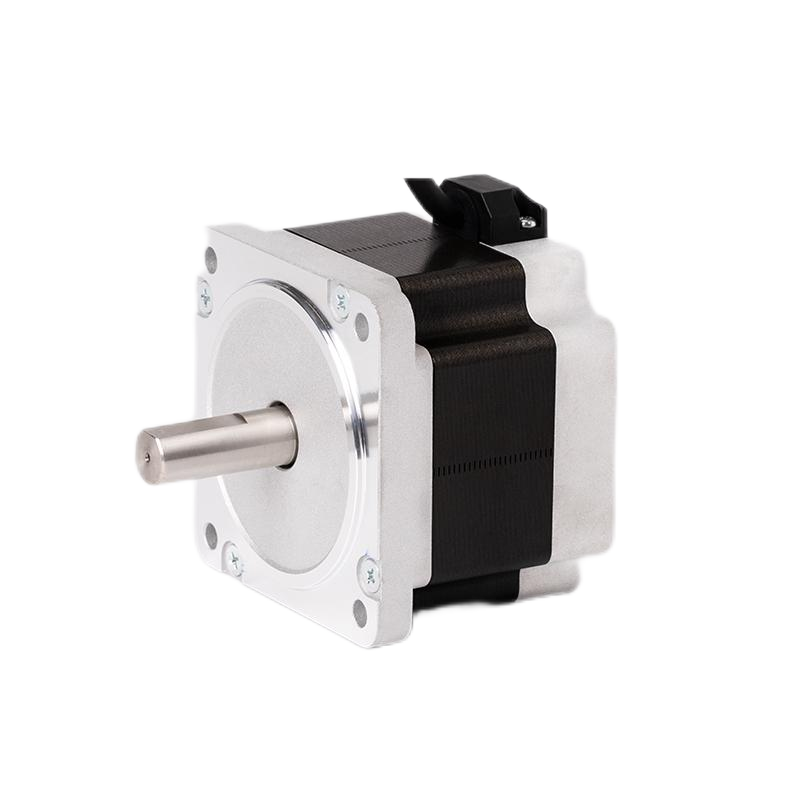

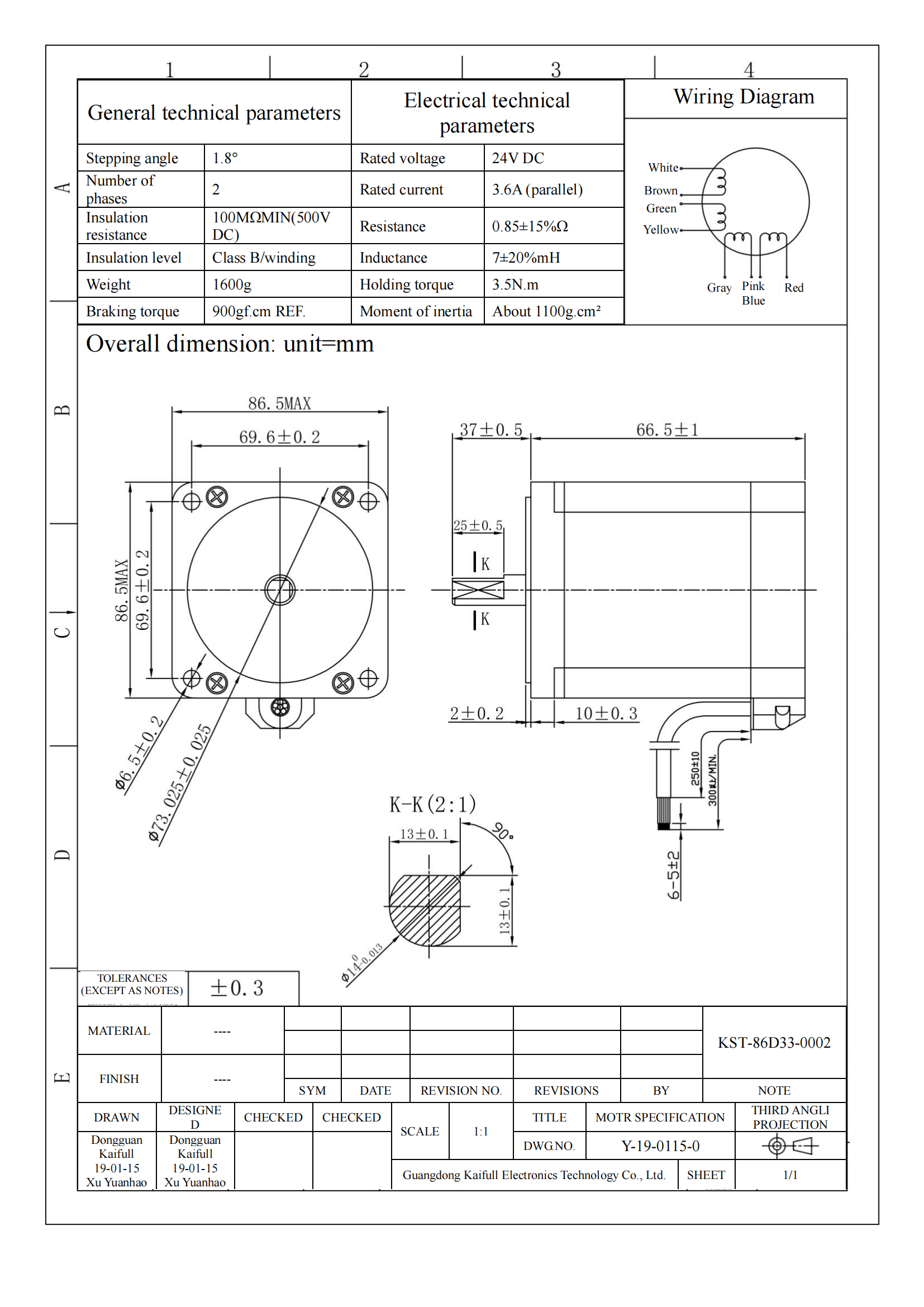

The KST-86D33-0002 is a high-quality two-phase stepper motor designed for precise motion control in a variety of applications. With a step angle of 1.8° and a holding torque of 3.5N·m, this motor is ideal for systems requiring moderate torque and high accuracy, such as CNC machinery, robotics, and industrial automation.

The motor operates at a rated current of 3.6A (parallel) and is powered by a 24V DC drive voltage, offering efficient and reliable performance. With a phase resistance of 0.85Ω±15% and inductance of 7mH±20%, the motor ensures smooth and controlled operation while minimizing power losses.

With Class B insulation and an insulation resistance of 100MΩ minimum at 500V DC, the motor is designed for long-term reliability and safety. The braking torque is 900gf·cm, and the moment of inertia is approximately 1100g·cm², making it suitable for applications where rapid and precise stops are required.

Weighing 1600g, the KST-86D33-0002 is a compact and efficient solution for high-precision motion control, providing the reliability and performance needed for demanding industrial tasks.
