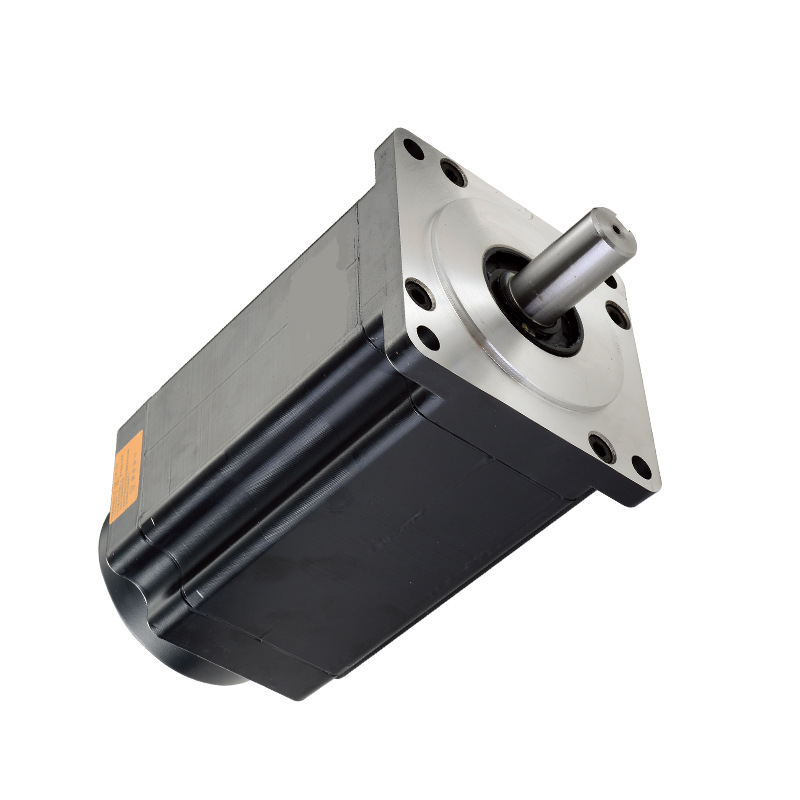

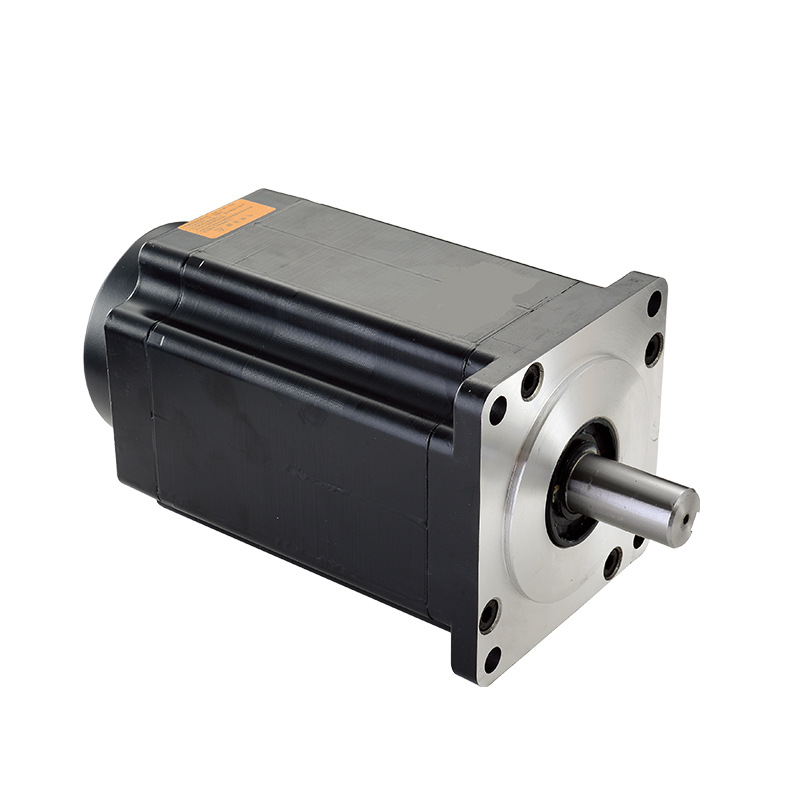

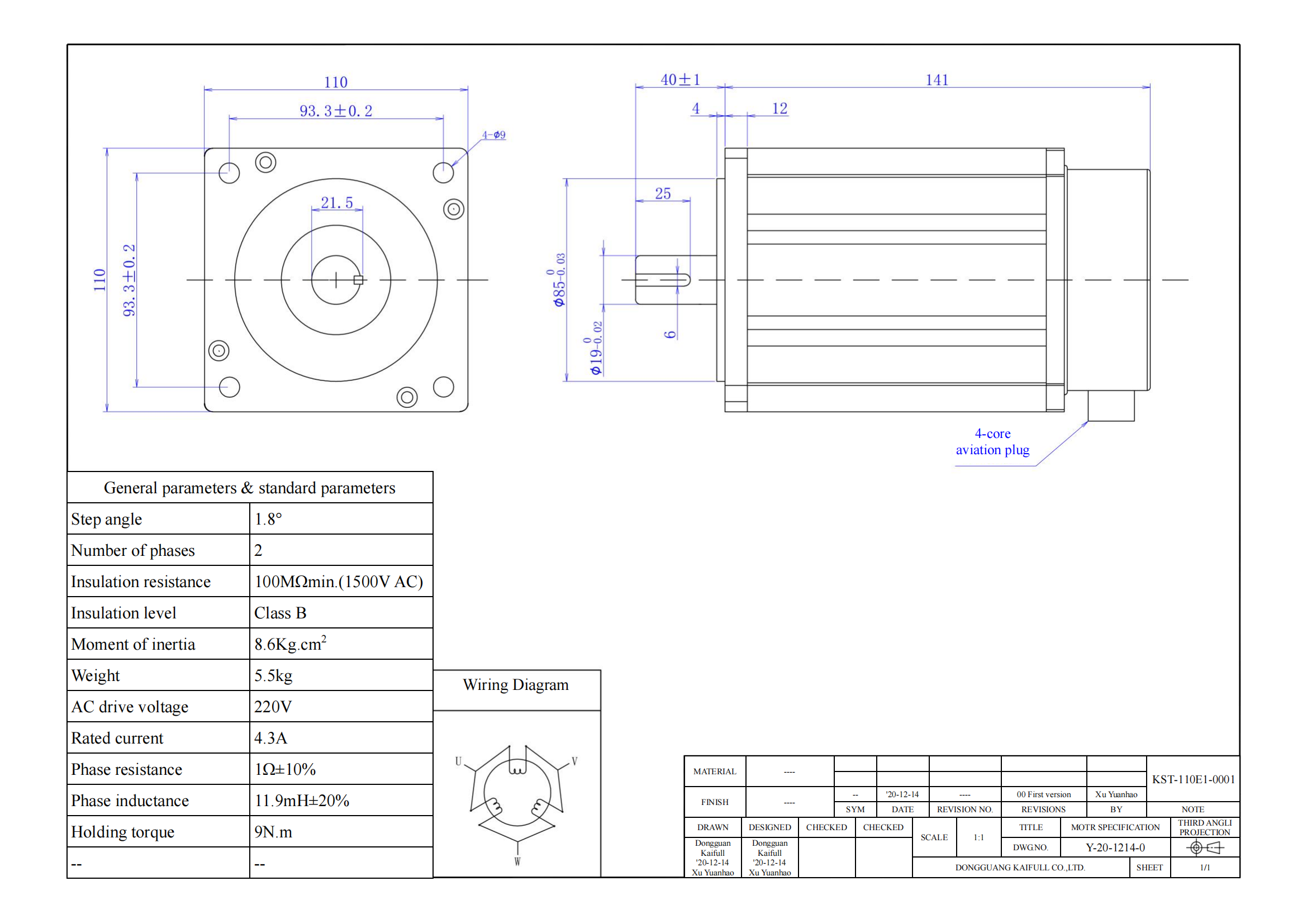

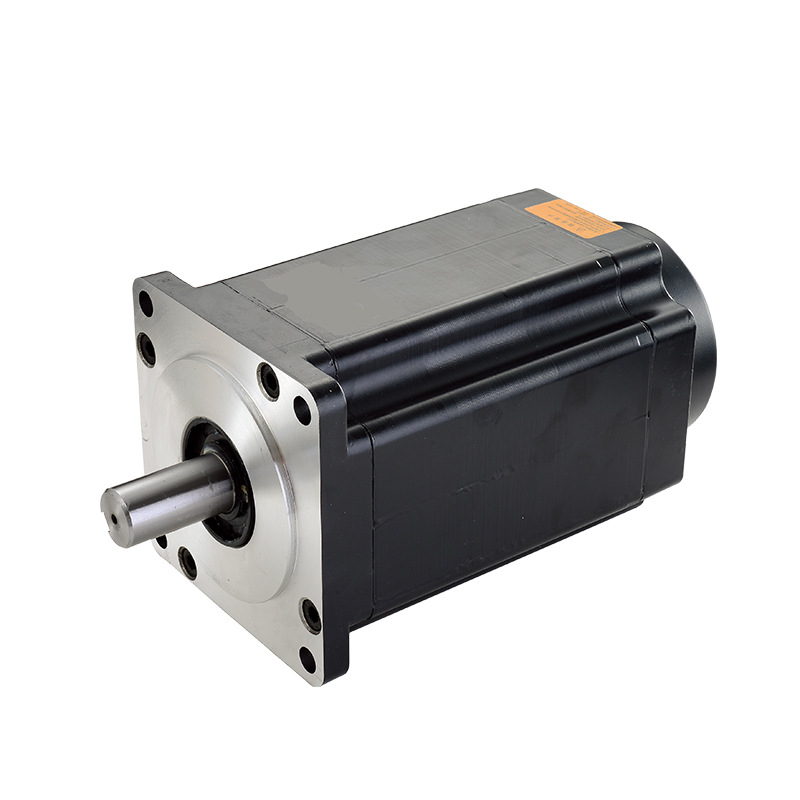

The KST-110E1-0001 is a reliable and efficient two-phase stepper motor with a step angle of 1.8°, offering a holding torque of 9N·m. This motor is designed to meet the needs of various industrial applications requiring precise motion control, including CNC machines, robotics, and automation systems.

With a rated current of 4.3A and 220V AC drive voltage, the KST-110E1-0001 delivers consistent performance while optimizing energy usage. The phase resistance is 1Ω, and the phase inductance is 11.9mH, ensuring smooth operation and minimal power loss during operation.

Constructed with Class B insulation and an insulation resistance of 100MΩ minimum at 1500V AC, the motor ensures long-term durability and safety. Its moment of inertia is 8.6Kg·cm², allowing for precise motion with minimal vibration, ideal for applications requiring high levels of accuracy.

Weighing only 5.5kg, the KST-110E1-0001 is a compact, high-performance motor that excels in high-torque applications, offering durability and reliability for a wide range of industrial and automation systems.
