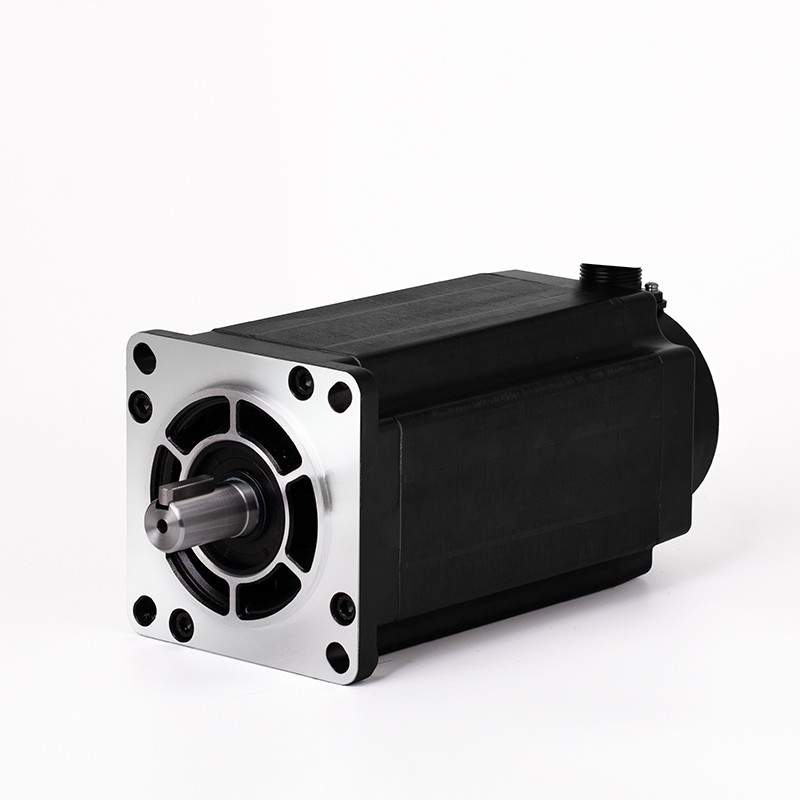

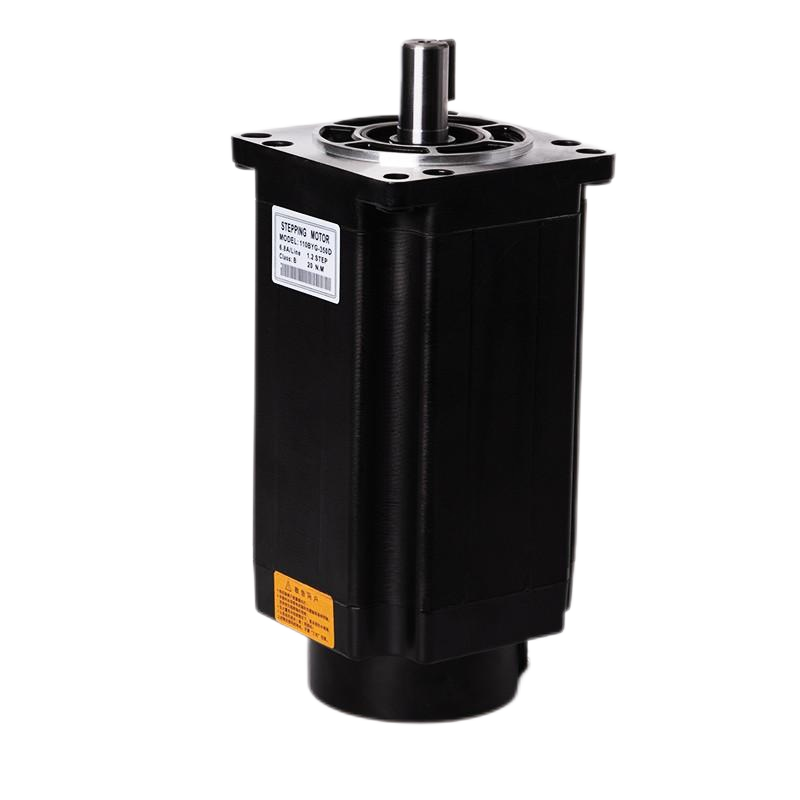

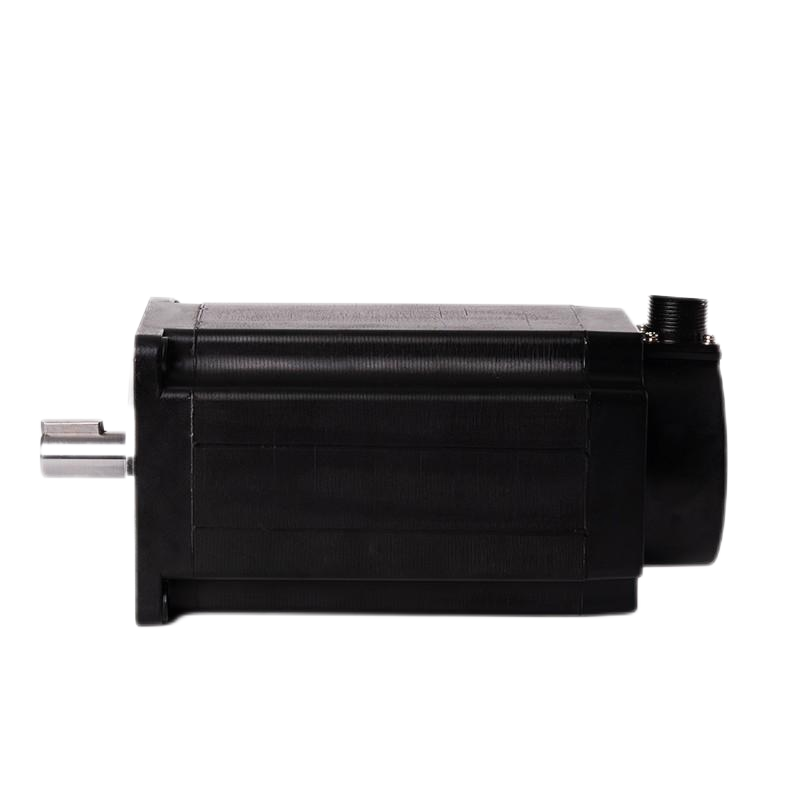

The KST-110E3-0001 is a precision-engineered three-phase stepper motor, designed for high-torque, high-precision applications in industrial automation and robotics. Featuring a step angle of 1.2° and a holding torque of 19N·m, this motor delivers exceptional performance in systems that require accurate motion control.

With a rated current of 6.0A and a 220V AC drive voltage, the KST-110E3-0001 ensures stable and efficient operation under demanding conditions. The phase resistance is 1.28Ω and the phase inductance is 19mH, allowing for smooth motion and minimized power loss, even at higher speeds.

The motor is built with Class B insulation and offers an insulation resistance of 100MΩ minimum at 1500V AC, providing excellent reliability and safety in industrial environments. With a moment of inertia of 14.8Kg·cm², this motor offers smooth acceleration and deceleration, making it ideal for precision applications.

Weighing 8.8kg, the KST-110E3-0001 is a compact and powerful option for high-performance motion control. It is ideal for use in CNC machinery, robotics, and other applications where precision and torque are critical.
