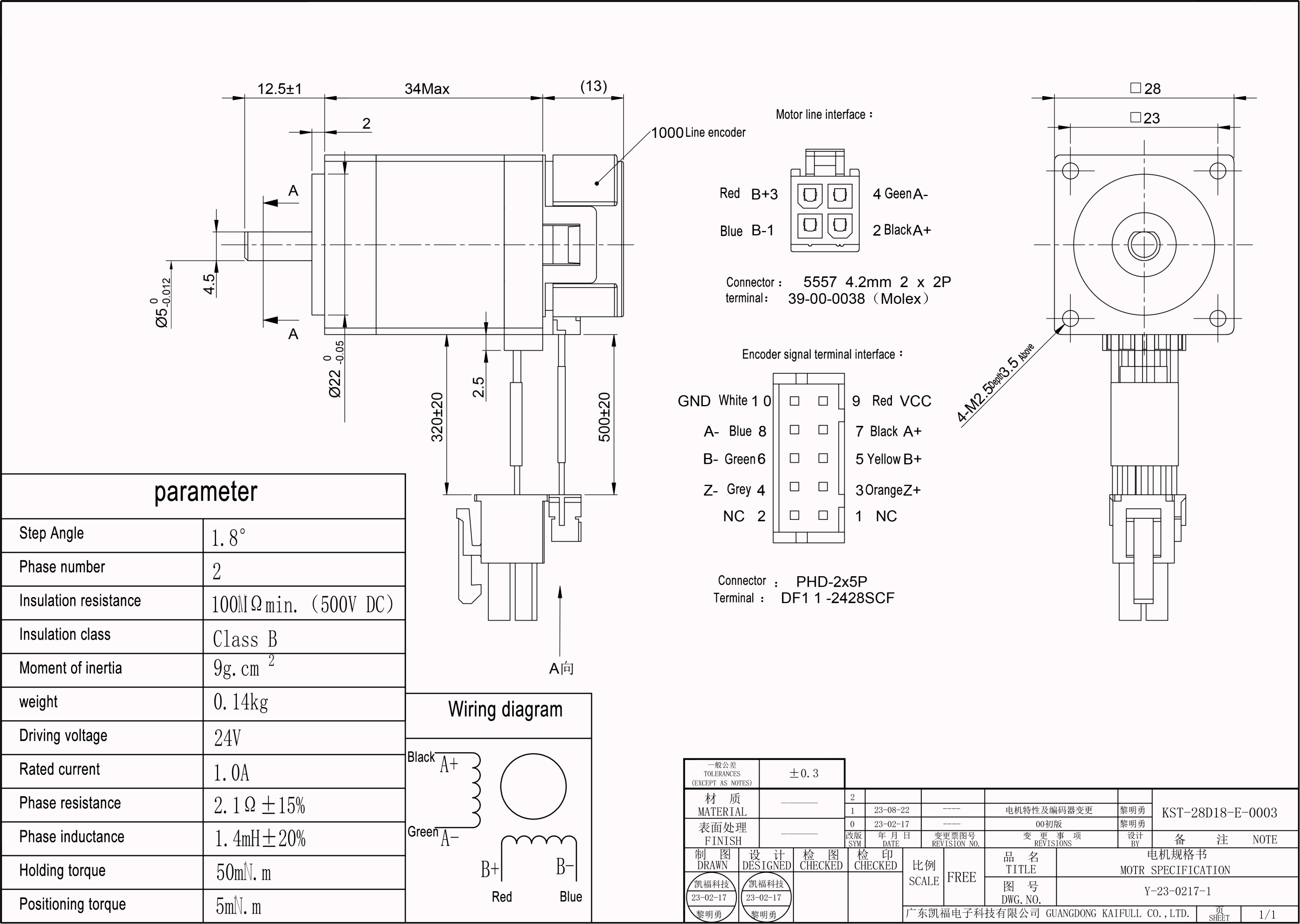

The KST-28D18-E-0003 is a high-performance two-phase stepper motor tailored for precise motion control in compact setups. Featuring a 1.8° step angle, it delivers consistent and reliable incremental movement, ideal for applications requiring accuracy and efficiency.

Key Features:

• Step Angle: 1.8°, ensuring precise and incremental position control.
• Driving Voltage: 24V, suitable for various control systems.
• Rated Current: 1.0A, delivering sufficient power for small to medium loads.
• Phase Resistance: 2.1Ω ± 15% at 25°C, ensuring stability in diverse conditions.
• Phase Inductance: 1.4mH ± 20%, promoting smooth and stable motor operation.
• Holding Torque: 50mN·m, suitable for light-load applications requiring high precision.
• Positioning Torque: 5mN·m, enabling accurate and steady positioning.
• Rotor Inertia: 9g·cm², minimizing response time and energy requirements.
• Insulation Resistance: 100MΩ min. and Class B insulation, ensuring operational safety and reliability.
• Weight: 0.14kg, compact and lightweight for space-constrained installations.

This motor is optimized for use in micro robotics, precision instrumentation, medical devices, and other compact equipment demanding reliable and accurate stepper motor performance.
