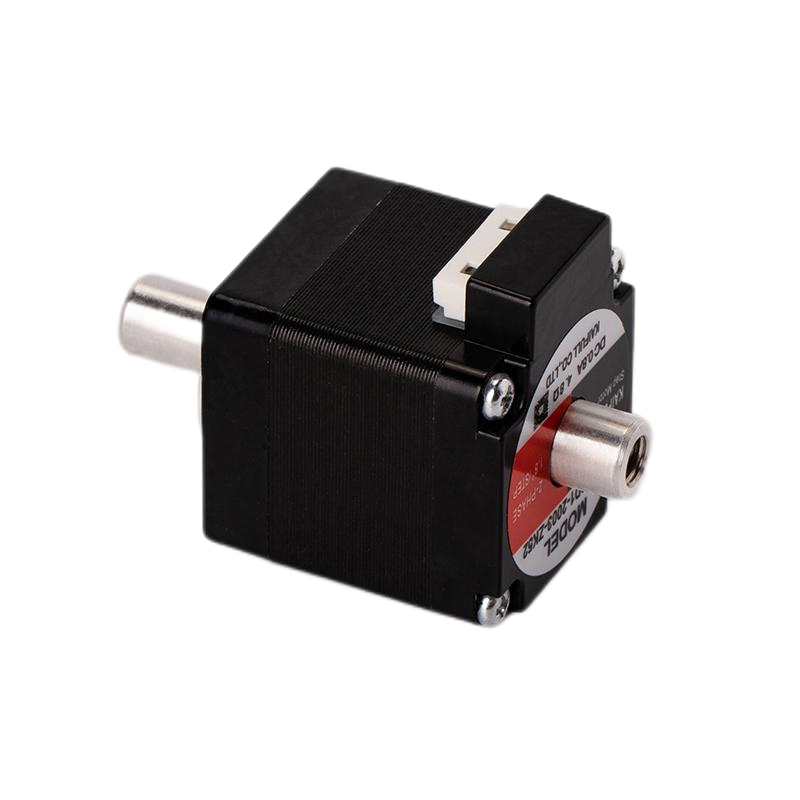

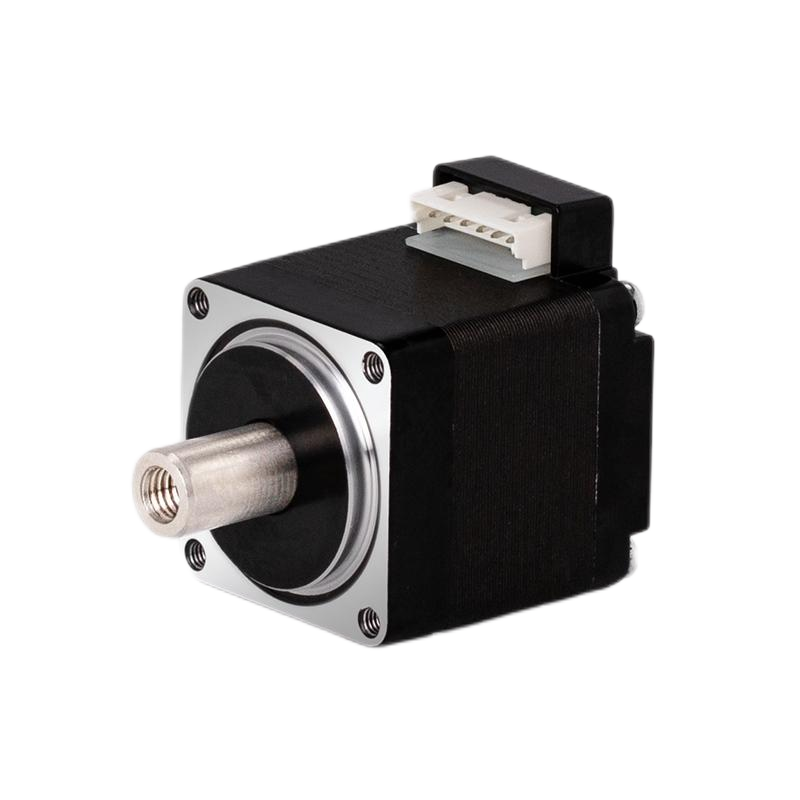

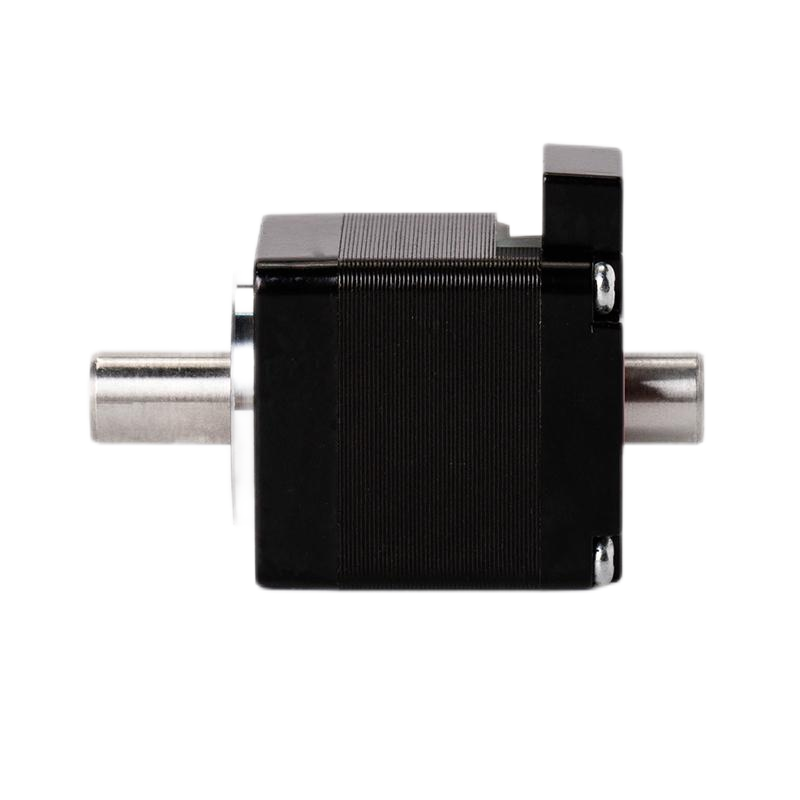

The KST-28D18-ZKE-0005 is a 28mm frame stepper motor designed for precision and reliability in motion control applications. With a 1.8° step angle and 0.67A rated current, it offers a perfect balance between power and precision, making it suitable for a variety of light-duty applications.

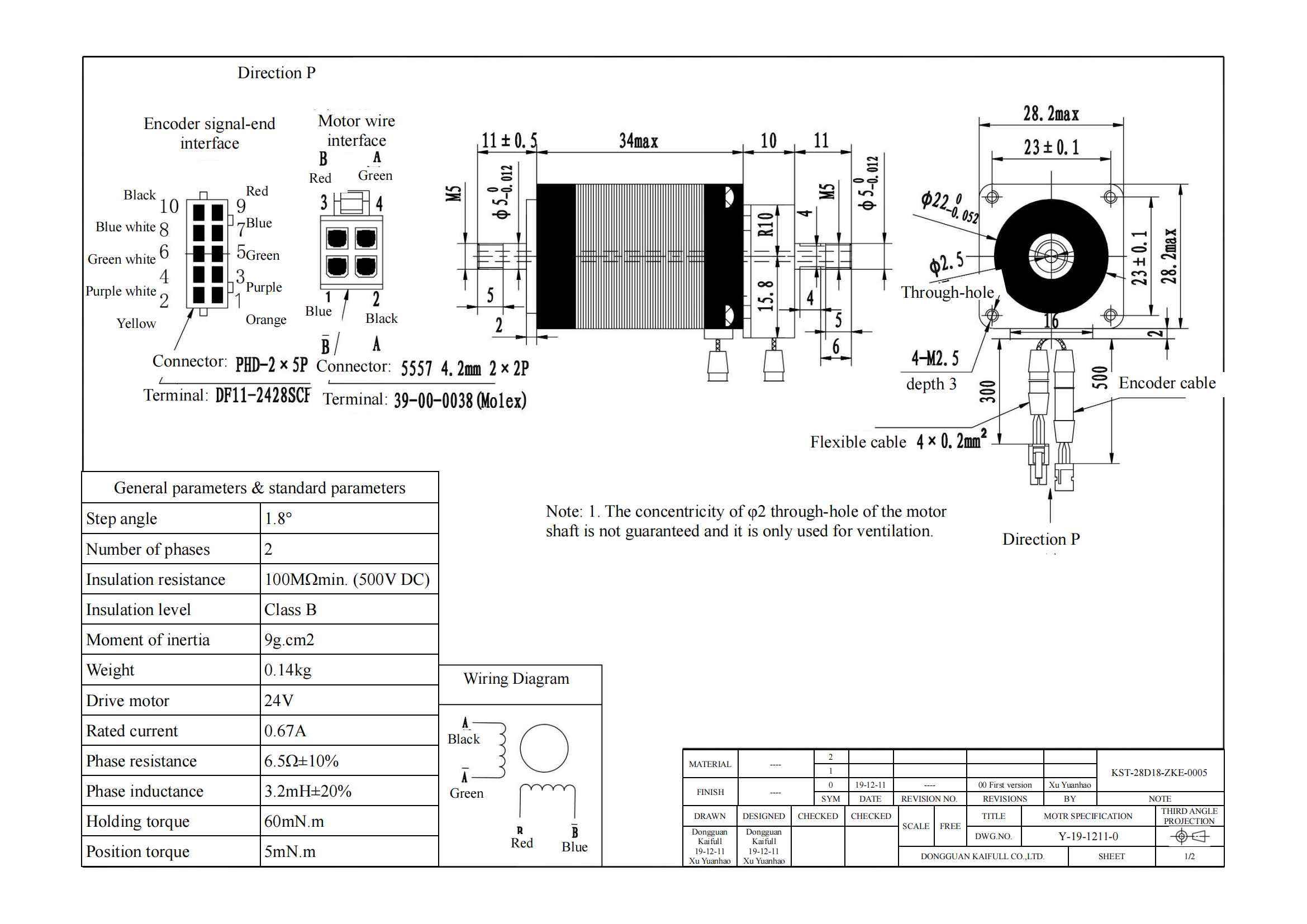

Key features of the motor include a holding torque of 60mN·m, ensuring stable operation in low-torque applications, and a position torque of 5mN·m, which is ideal for precision positioning tasks. The motor operates at a drive voltage of 24V with 6.5Ω phase resistance and 3.2mH phase inductance, offering efficient power consumption.

With a moment of inertia of 9g·cm², the motor allows for quick acceleration and deceleration, making it well-suited for dynamic applications. Weighing only 140g, the motor is compact and lightweight, making it an ideal choice for small-scale equipment where space is limited.

The KST-28D18-ZKE-0005 is perfect for use in applications like small robotics, 3D printers, medical devices, and automated systems, where space efficiency and precise control are required.
