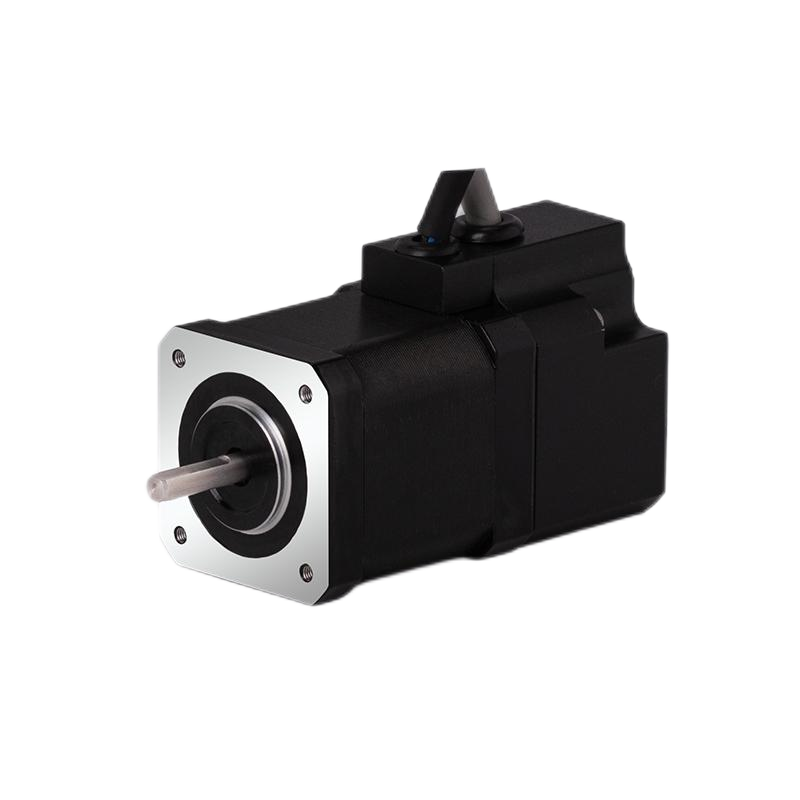

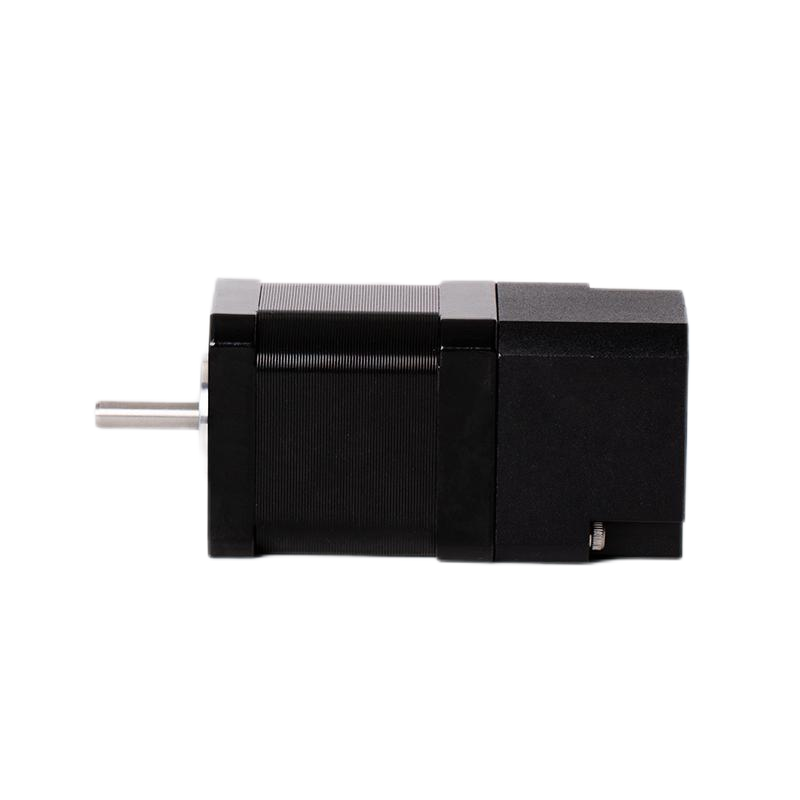

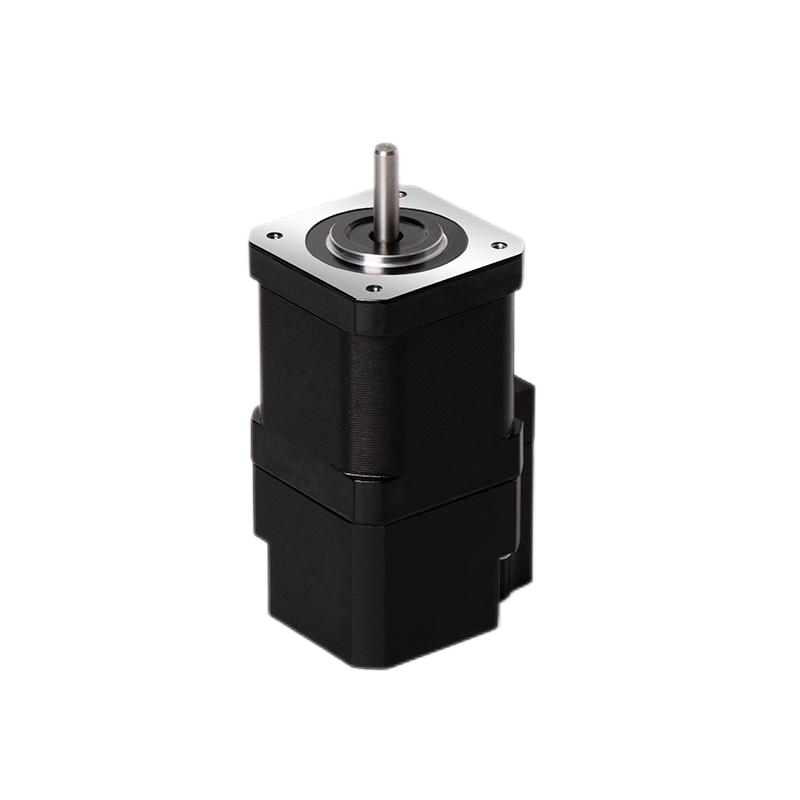

The KST-42D30-EA-0014 is a high-quality two-phase stepper motor, designed for precision motion control applications. Featuring excellent torque, robust construction, and reliable operation, this motor is ideal for a variety of industrial and commercial uses.

Key Features:

• Step Angle: 1.8°, ensuring precise positioning and smooth motion.
• Rated Current: 2.0A, providing efficient and stable performance.
• Phase Resistance: 1.8Ω ± 15%, ensuring consistent operation under varying conditions.
• Phase Inductance: 3.3mH ± 20%, delivering reliable motion and performance.
• Holding Torque: 620mN·m, capable of handling moderate loads with precision.
• Positioning Torque: 20mN·m, enhancing its ability to maintain accuracy in static positions.
• Rotor Inertia: 80g·cm², allowing for precise control with reduced vibrations.
• Insulation Class: Class B, supporting reliable operation under thermal stress.
• Insulation Resistance: 100MΩ minimum (500V DC), ensuring electrical safety and longevity.
• Weight: 0.5Kg, offering a balance between durability and compact design.

This motor is well-suited for robotics, CNC equipment, automated machinery, and other motion control systems requiring high precision and reliability.
