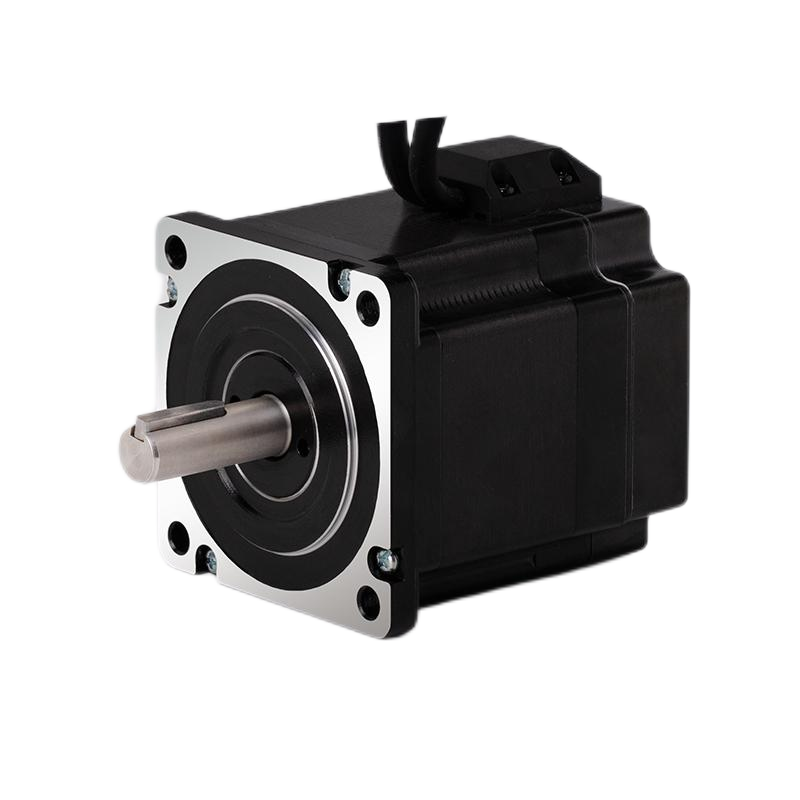

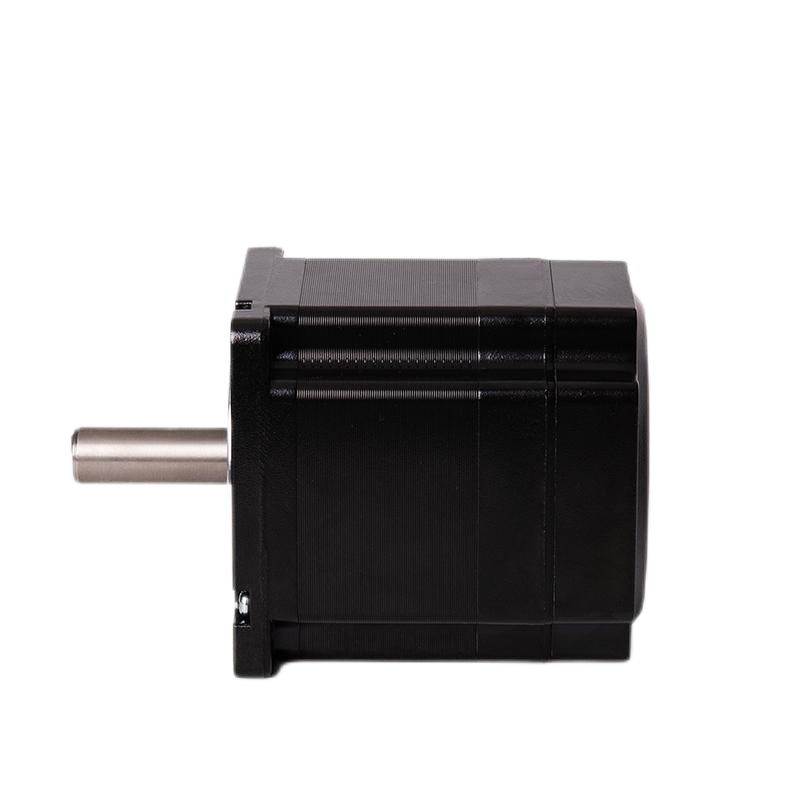

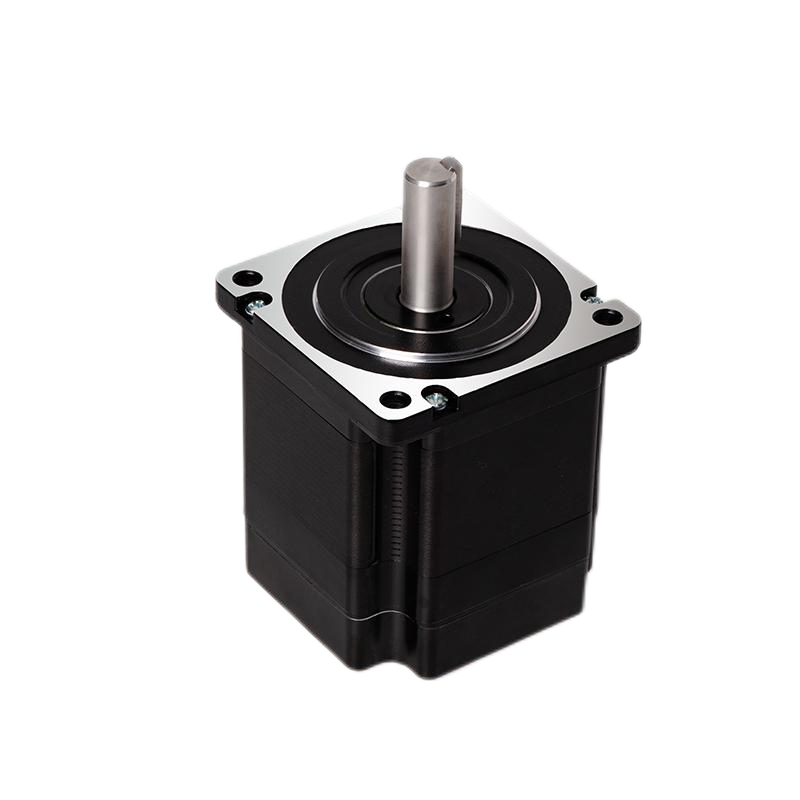

The KST-86D45-E-0001 is a powerful two-phase stepper motor engineered for high-torque and precision-demanding applications. With its rugged construction and superior performance, this motor is an ideal choice for heavy-duty industrial and automation tasks.

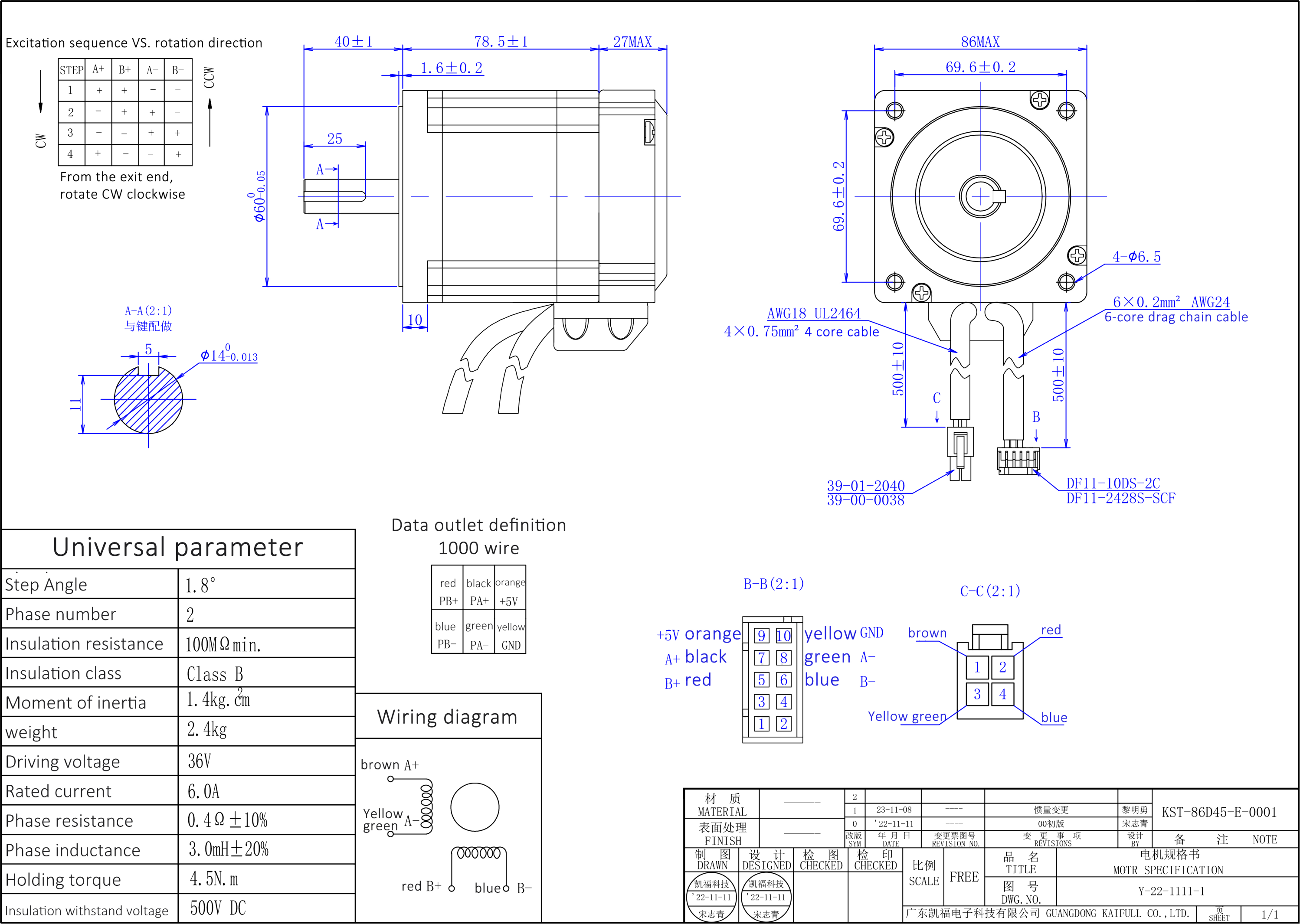

Key Features:

• Step Angle: 1.8°, ensuring accurate positioning and smooth motion.
• Rated Current: 6.0A, delivering exceptional power for demanding operations.
• Phase Resistance: 0.4Ω ± 10%, optimizing energy efficiency and minimizing heat.
• Phase Inductance: 3.0mH ± 20%, supporting stable and responsive performance.
• Holding Torque: 4.5N·m, suitable for heavy-load applications requiring high torque.
• Moment of Inertia: 1.4Kg·cm², ensuring steady and smooth motion control.
• Weight: 2.4kg, robust and durable for industrial environments.
• Insulation Resistance: 100MΩ minimum (500V DC), offering excellent electrical insulation.
• Insulation Withstand Voltage: 500V DC, ensuring safety and reliability.
• Insulation Class: Class B, capable of operating in moderate thermal conditions.
• Driving Voltage: 36V, providing consistent and powerful performance.

The KST-86D45-E-0001 is an ideal solution for applications such as industrial machinery, CNC systems, robotics, medical equipment, and factory automation. Its high torque and dependable performance make it a reliable choice for critical tasks.
